Xtra Series
Description

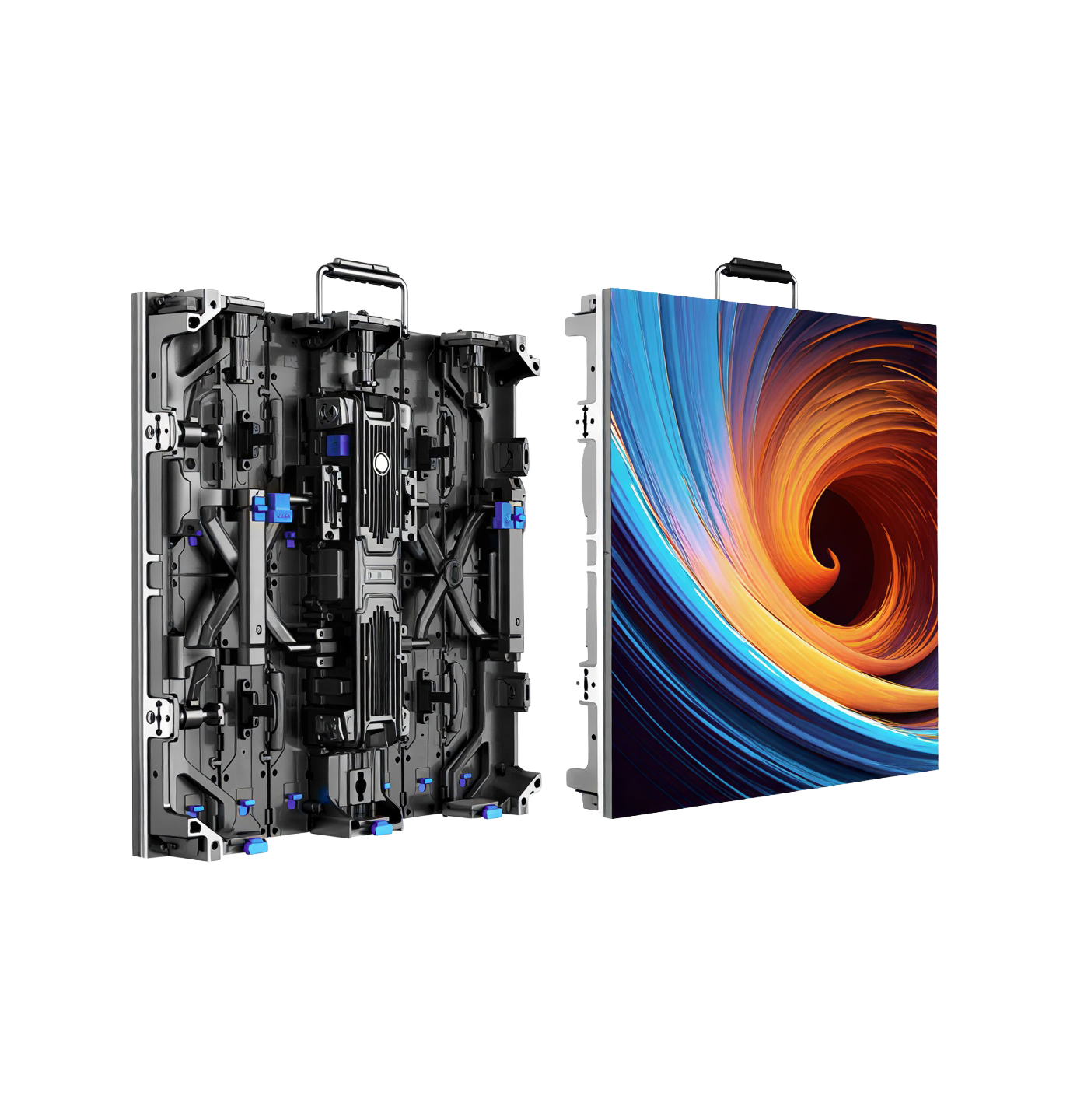

The Xtra Series is a flexible indoor and outdoor LED display solution engineered for productions that demand creative freedom and fast deployment.
Available in 1.9mm, 2.6mm, 2.9mm, and 3.9mm pixel pitches within a standardised 500×500mm cabinet, it is purpose-built for curved installations, supporting ±45° arcs, S-shapes, and full cylinder configurations with a minimum diameter of 1.27m using eight cabinets.
Its magnetic hanging design and integrated quick-lock system enable single-person installation, while full compatibility with the MU, MG, and Rubik Series opens up an extensive range of creative configurations for concerts, sports events, award ceremonies, and conferences.
Key Features
- Pixel pitch: 1.9mm / 2.6mm / 2.9mm / 3.9mm
- Cabinet size: 500 × 500 × 73mm
- IP50 (indoor) / IP65 (outdoor)
- Brightness: up to 1,500 nits (indoor) / up to 5,500 nits (outdoor)
- Refresh rate: ≥3840Hz (3840 / 7680Hz selectable)
- Viewing angle: 160° horizontal / 120° vertical
- Supports ±45° arc, S-shape, and full cylinder configurations
- Magnetic hanging design for single-person installation with quick locks on all sides
- Compatible with MU, MG, and Rubik Series for expanded creative shapes
- Rear maintenance without removing the power box cover
