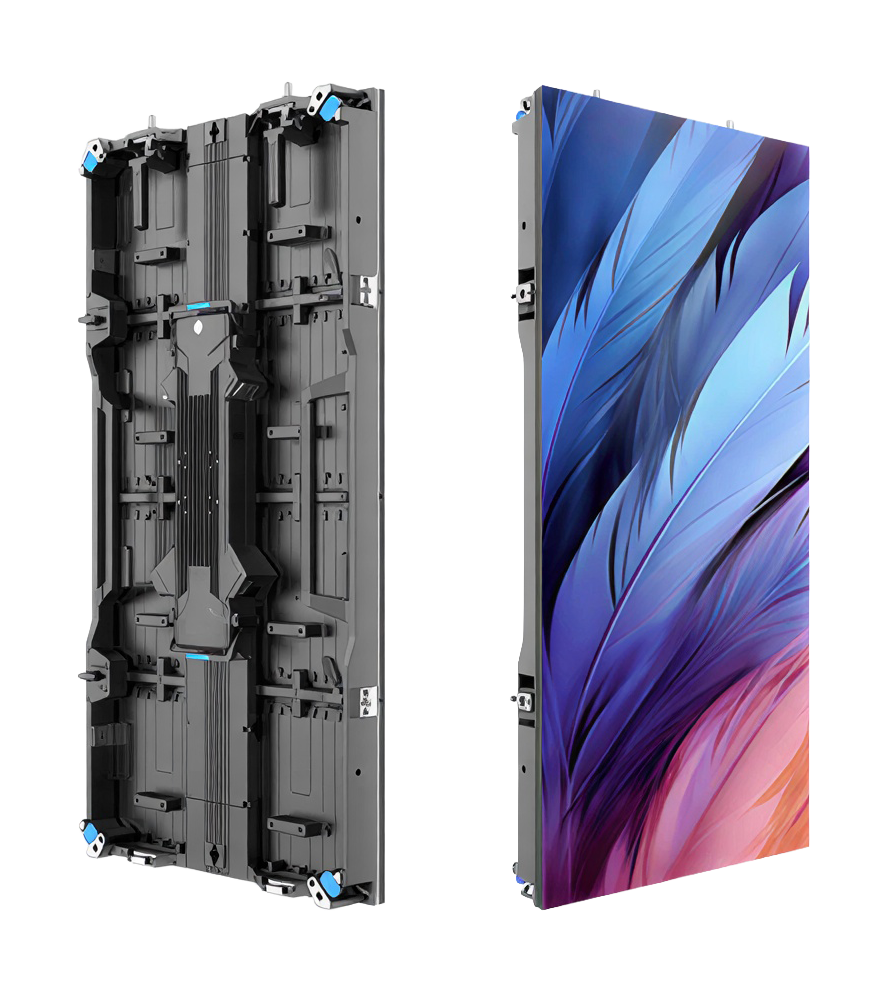

MU Series
Description
The MU Series is a versatile large-scale LED display solution engineered for fast deployment across indoor and outdoor productions.
Available in five pixel pitches and two cabinet sizes: 500×500mm and 500×1000mm.
It's designed to help operators build large screens quickly and efficiently, with a three-step hanging process manageable by a single person.
Its platform design accommodates all MU pixel pitches on a single frame and is fully compatible with the MG9, MG10, and Xtra Series for expanded creative configurations.
From large-scale concerts and sports events to award ceremonies and celebration meetings, the MU Series is built for the big stage.
Key Features
- Pixel pitch: 1.9mm / 2.6mm / 2.9mm / 3.9mm / 4.8mm
- Cabinet sizes: 500 × 500 × 73mm / 500 × 1,000 × 73mm
- IP50 (indoor) / IP65 (indoor & outdoor)
- Brightness: up to 4,200 nits (outdoor) / up to 1,500 nits (indoor)
- Refresh rate: ≥3840Hz
- Viewing angle: 160° horizontal / 120° vertical
- Single-person installation in 3 steps — power box replaceable in 5 seconds
- Supports ±7.5° curve splicing (optional ±15°) and multi-faceted configurations with Rubik cabinet
- Compatible with MG9, MG10, and Xtra Series on a single frame
- Front and rear maintenance with ground stacking and hanging installation support
