MT Series
Description

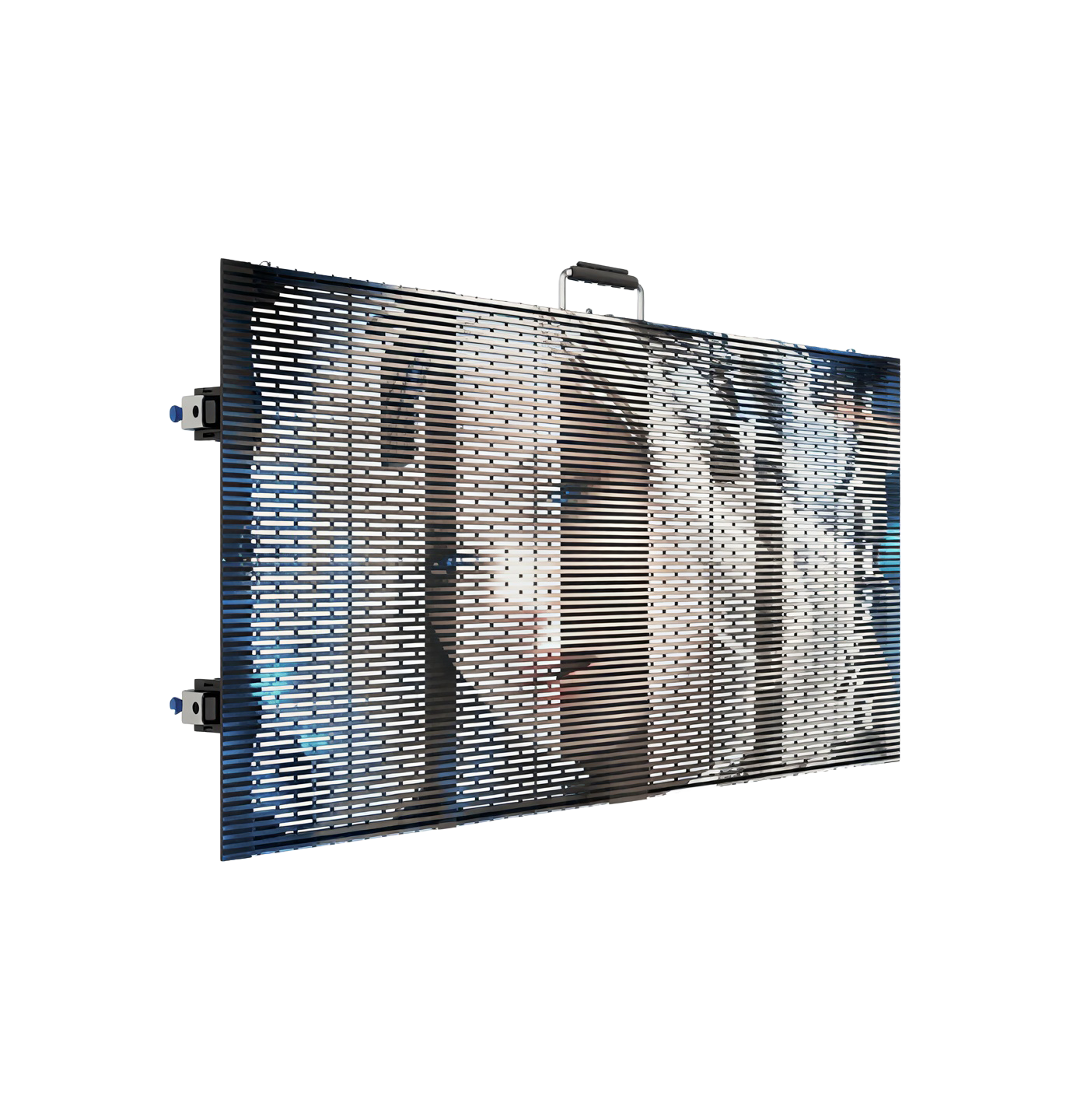

The MT II Series is an upgraded transparent LED display solution engineered for large-scale indoor and outdoor stage installations.
Built around a high-grade magnesium alloy frame with a hollow double-frame structure, it delivers exceptional transparency of 50% or above alongside a maximum hanging height of 20 metres, making it a reliable and structurally robust choice for demanding live productions.
A standout feature of the MT II is its optional shutter system, enabling a one-button switch between transparent and solid display modes within a single screen.
Available in H3.9-V7.8 pixel pitch across 1000×500mm and 500×500mm cabinet sizes, it supports curved, 90° corner, and staggered splicing configurations for versatile creative stage design.
- Pixel pitch: H3.9 / V7.8
- Cabinet sizes: 1,000 × 500 × 83mm / 500 × 500 × 83mm
- Transparency: ≥50%
- Refresh rate: ≥7680Hz
- IP65 rated for indoor and outdoor operation
- High-grade magnesium alloy hollow double-frame for superior strength and transparency
- Maximum hanging height: 20 metres
- One-button switch between transparent and solid display modes via optional shutter system
- Supports ±15° curved, 90° corner, and staggered cabinet splicing configurations
- Single-person installation via integrated quick-lock system with large handle
