ST038
Description

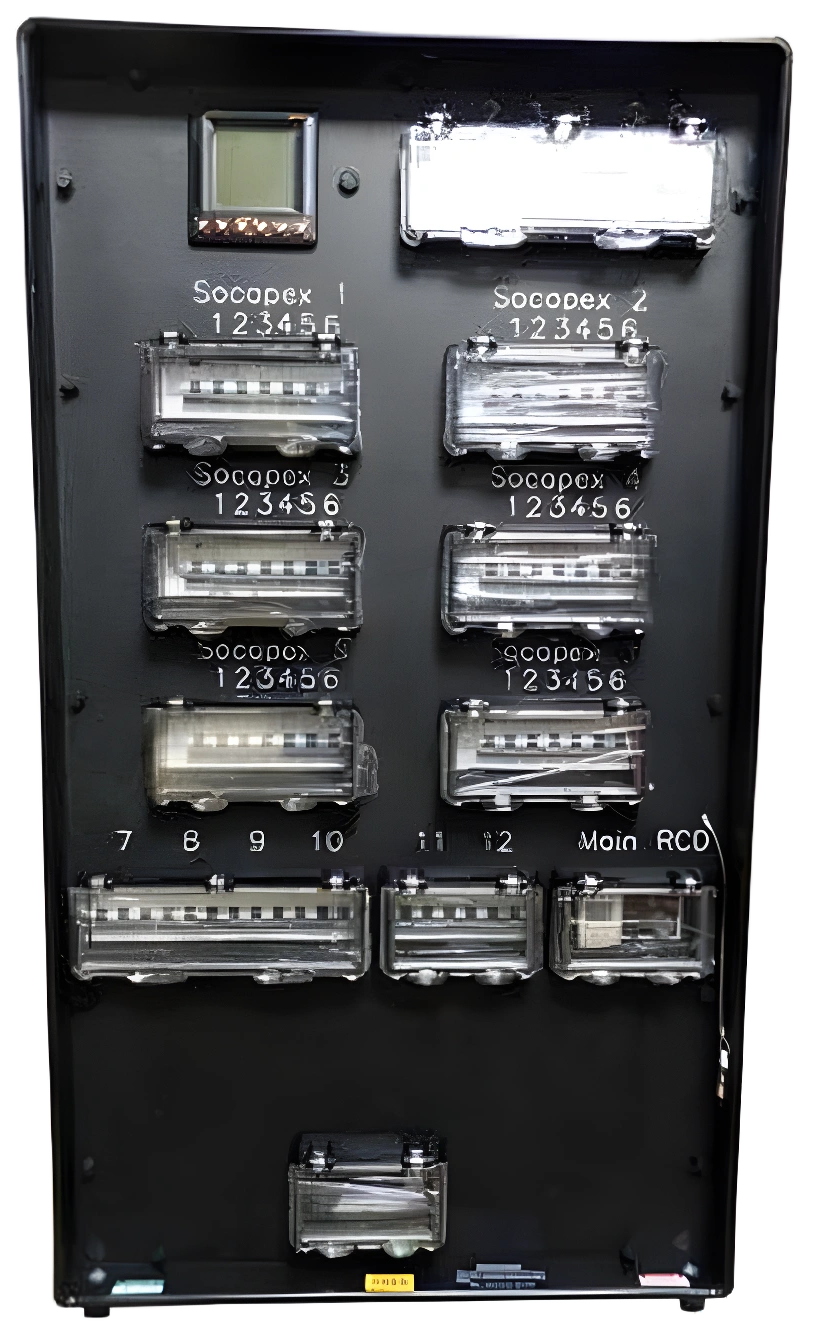

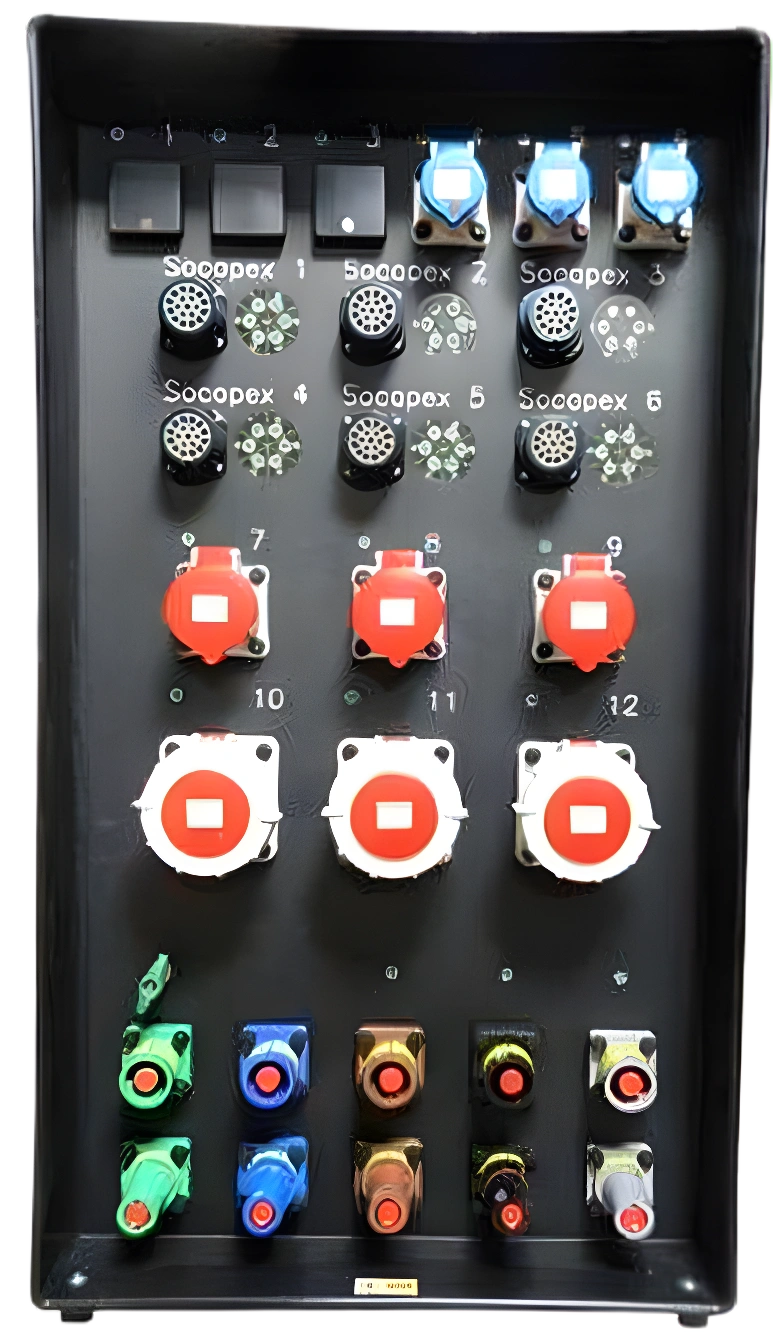

ST038 400A PowerPro is a heavy-duty HDPE power distribution unit engineered for the most demanding large-scale live events and installations.
Fed via 400A Powerlock with unprotected link-through, it delivers comprehensive 3-phase and single-phase distribution with overall variable switchable earth leakage and a digital meter across a wide range of fully protected outputs.
Key Features
- Input: 400A 400V 5-wire Powerlock with unprotected link-through, 400A TP MCCB, variable switchable earth leakage, overall digital meter
- 3 × 63A 400V 5P panel sockets with TP MCBs
- 3 × 32A 400V 5P panel sockets with 32A TP MCBs
- 3 × 16A 230V sockets with 16A 30mA RCBOs
- 3 × 13A 230V panel sockets with 16A 30mA RCBOs
- 6 × 19-pin SOCA protected by 100A 2P 30mA RCDs and 6 × 16A SP MCBs
- External earth stud
- Weight: 70 kg
