PT-RZ34K2

Description

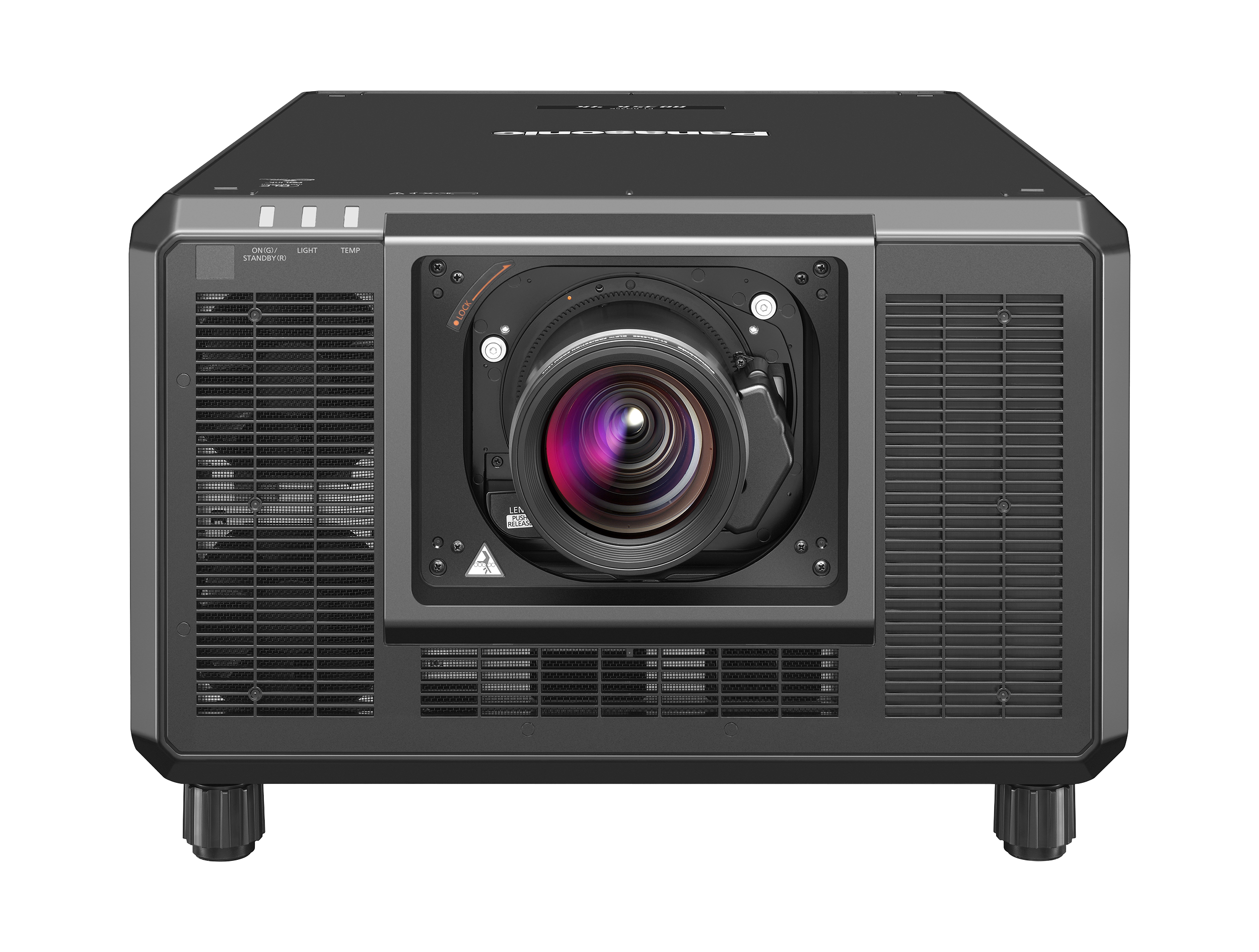

PT-RZ34K2 — 3-Chip DLP™ WUXGA Projector, 30,500 lm

The PT-RZ34K2 is the WUXGA sibling of the PT-RQ35K2, sharing the exact same body, brightness, and rock-solid reliability, just at 1920 x 1200 resolution instead of native 4K.

For jobs where you don't need the extra pixel count but want the same rental-friendly footprint and color performance as its 4K counterpart, this is the go-to option.

Like the RQ35K2, it's genuinely small and light enough to be moved and installed by two people, and it shares the same lens lineup, so you're not stuck buying new glass just to add it to your fleet.

Key Features

30,500 lm (ANSI) / 32,000 lm (center), WUXGA (1920 x 1200 px) resolution
Same compact, two-person-portable body as the PT-RQ35K2, ideal for rental fleets and tight venues
Two blue lasers plus one red laser module for expanded color-gamut reproduction, truer blues and deeper reds
Compatible with the existing 3-Chip DLP™ lens lineup (except RQ50K-dedicated lenses), so fleet upgrades don't mean buying new optics
Preactivated Geometry Manager Pro upgrade kits, no license key activation needed, auto edge-blend calibration via external camera
Smart Projector Control app with NFC pairing for network setup before AC power is even connected, great for fast fleet rollouts
Flexible black-level adjustment with up to 17 control points for uniform edge-blends on curved screens
Backup Input with automatic failover between primary/secondary signals in as little as 0.3 seconds, no screen blanking
Multi-Laser Drive Engine with Failover Circuitry, bypasses only affected diodes if one fails, not the whole module
Quiet Mode cuts operating noise by 3 dB, extends time-to-50%-brightness to 26,000 hours
Free 360-degree installation through any axis with powered lens shift

Datasheet

Download DatasheetPDF · Technical specs

Compatible Lenses

Optional lenses listed for PT-RZ34K2 in its datasheet — choose any to include with your inquiry.

ET-D3LES20

Lens

1.67–2.41:1 Throw Ratio(4K / WUXGA) Zoom Lens for PT-RQ45K/RZ44K,

Lens type

Zoom lens

F-number

2.5

Focal length

(f) 35.0-50.9 mm

Throw ratio

-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Dimensions

(WxHxD) 154 × 154 × 265 mm (6-1/16 × 6-1/16 × 10-7/16")

Weight

[kg] Approx 5.2 kg (11.5 lbs)

Datasheet — ET-D3LES20

ET-D3LES250

Lens

1.79-2.59:1 Throw Ratio Zoom Lens for 3-Chip DLP

Lens type

Zoom Lens

F-number

2.5

Focal length

(f) 35.0-50.9 mm

Throw ratio

-> 4K 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Throw ratio

-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Dimensions

(WxHxD) Approx. 177 × 154 × 265 mm (6-31/32 × 6-1/16 × 10-7/16")

Datasheet — ET-D3LES250

ET-D3LEW10

Lens

Zoom lens for 3-Chip DLP

Lens type

Zoom lens

F-number

2.5

Focal length

(f) 26.6– 36.4 mm

Throw ratio

-> WUXGA 1.26-1.72:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Throw ratio

-> SXGA+ 1.37–1.86:1

Dimensions

(WxHxD) 154 × 154 × 354 mm (6-1/16 × 6-1/16 × 13-15/16")

Datasheet — ET-D3LEW10

PT-RZ34K2

Compatible Lenses

ET-D3LES20

ET-D3LES250

ET-D3LEW10
