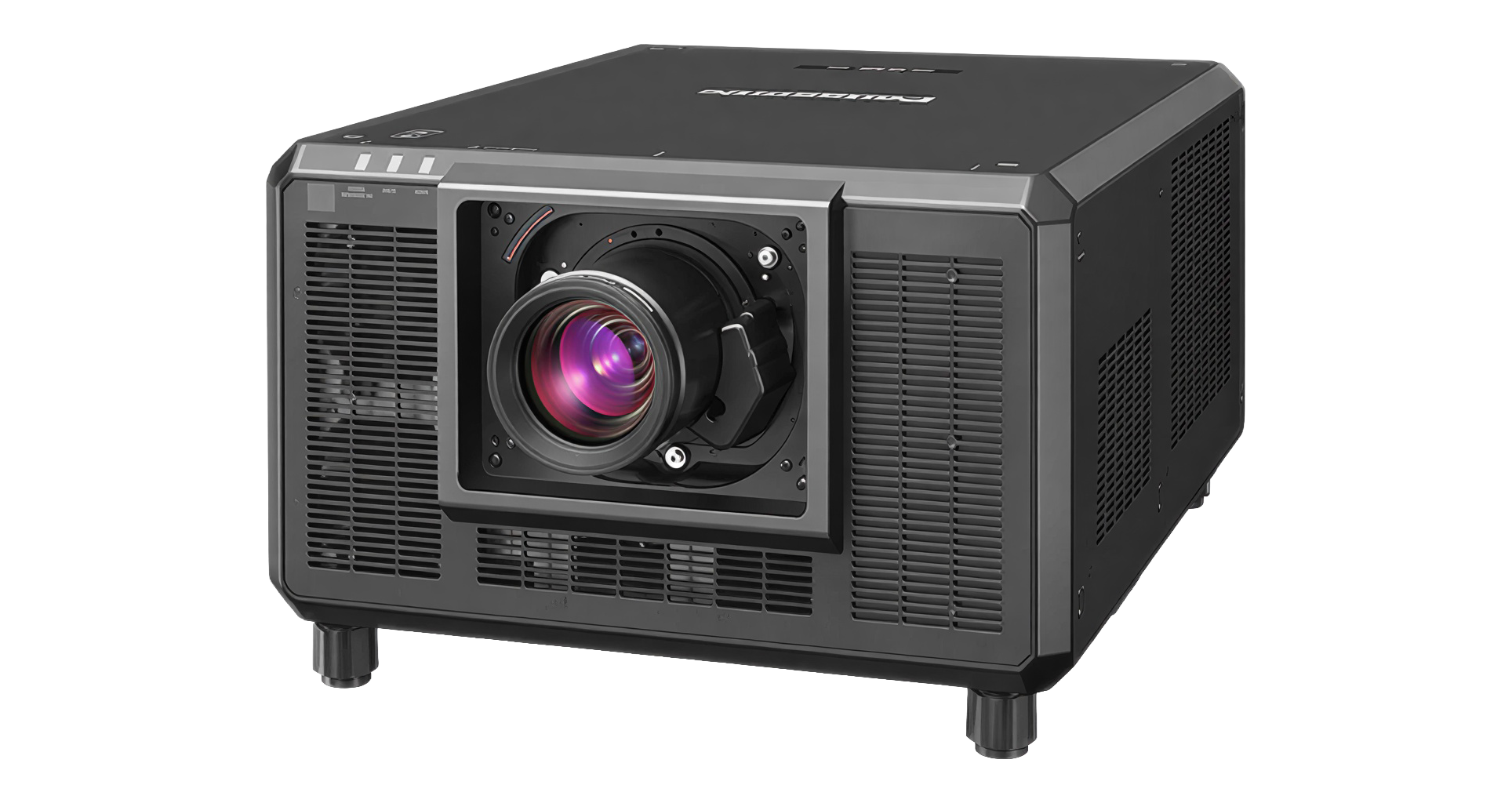

PT-RQ35K2
Panasonic

PT-RQ35K2

Description

The PT-RQ35K2 is the world's smallest and lightest projector in the 30,000-lumen 3-Chip DLP™ 4K category, light enough for two people to transport and install.

That makes it a natural fit for rental fleets and venues where storage space, labor, or logistics are tight constraints.

It brings a genuine color upgrade over previous generations too: a combination of two blue and one red laser module expands the color gamut, giving you truer blues and richer, more accurate reds.

And since it shares its lens mount with the rest of the 3-Chip DLP™ lineup (excluding dedicated RQ50K lenses), you can pull optics straight from your existing inventory rather than buying new ones.

Key Features

  • 30,500 lm (ANSI) / 32,000 lm (center), Native 4K (3840 x 2400 px) with Quad Pixel Drive
  • World's smallest and lightest 30,000-lumen-class 3-Chip DLP™ 4K projector, transportable by two people
  • Two blue lasers plus one red laser module for expanded color-gamut reproduction, truer blues and deeper reds
  • Compatible with the existing 3-Chip DLP™ lens lineup (except RQ50K-dedicated lenses), so fleet upgrades don't mean buying new glass
  • Preactivated Geometry Manager Pro upgrade kits, no license key activation needed, auto edge-blend calibration via external camera
  • Smart Projector Control app with NFC pairing for network setup before AC power is even connected, ideal for fast fleet rollouts
  • Gradation Smoother reduces banding in content with limited color bit-depth (PT-RQ35K2 only)
  • Flexible black-level adjustment with up to 17 control points for uniform edge-blends on curved screens
  • Backup Input with automatic failover between primary/secondary signals in as little as 0.3 seconds, no screen blanking
  • Multi-Laser Drive Engine with Failover Circuitry — bypasses only affected diodes if one fails, not the whole module
  • Quiet Mode cuts operating noise by 3 dB, extends time-to-50%-brightness to 26,000 hours
  • Free 360-degree installation through any axis with powered lens shift

Compatible Lenses

Optional lenses listed for PT-RQ35K2 in its datasheet — choose any to include with your inquiry.

ET-D3LES20

ET-D3LES20

Lens

1.67–2.41:1 Throw Ratio(4K / WUXGA) Zoom Lens for PT-RQ45K/RZ44K,

Lens type

Zoom lens

F-number

2.5

Focal length

(f) 35.0-50.9 mm

Throw ratio

-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Dimensions

(WxHxD) 154 × 154 × 265 mm (6-1/16 × 6-1/16 × 10-7/16")

Weight

[kg] Approx 5.2 kg (11.5 lbs)

Datasheet — ET-D3LES20
ET-D3LES250

ET-D3LES250

Lens

1.79-2.59:1 Throw Ratio Zoom Lens for 3-Chip DLP

Lens type

Zoom Lens

F-number

2.5

Focal length

(f) 35.0-50.9 mm

Throw ratio

-> 4K 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Throw ratio

-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Dimensions

(WxHxD) Approx. 177 × 154 × 265 mm (6-31/32 × 6-1/16 × 10-7/16")

Datasheet — ET-D3LES250
ET-D3LEW10

ET-D3LEW10

Lens

Zoom lens for 3-Chip DLP

Lens type

Zoom lens

F-number

2.5

Focal length

(f) 26.6– 36.4 mm

Throw ratio

-> WUXGA 1.26-1.72:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)

Throw ratio

-> SXGA+ 1.37–1.86:1

Dimensions

(WxHxD) 154 × 154 × 354 mm (6-1/16 × 6-1/16 × 13-15/16")

Datasheet — ET-D3LEW10
ET-D75LE10

ET-D75LE10

Lens

ET-D75LE10 — optional projection lens compatible with selected Panasonic projectors.

ET-D75LE20

ET-D75LE20

Lens

ET-D75LE20 — optional projection lens compatible with selected Panasonic projectors.
