Description

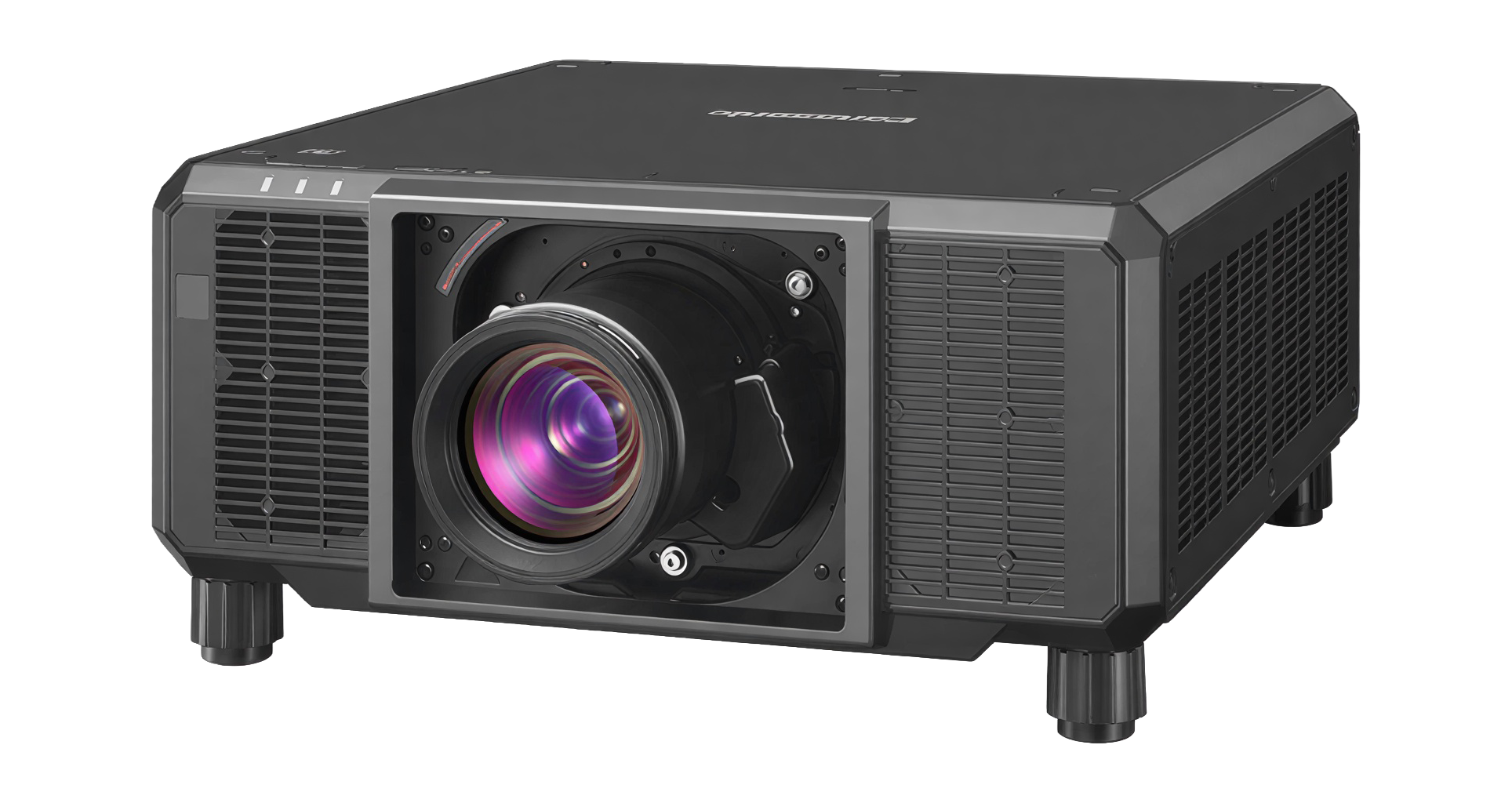

The PT-RQ18K brings the same "world's smallest and lightest" design philosophy as its bigger sibling, the RQ25K down to a more accessible 16,000 lm brightness point.
It's the smart pick when your project doesn't need the full 20,000 lumens but still demands genuine 3-Chip DLP™ image quality, native 4K sharpness, and the same two-person transport and install convenience.
Same Intel® SDM-ready slot, same Remote Preview LITE monitoring, and the same laser reliability that makes the whole RQ25K Series family a favorite for rental and touring work.
Key Features
Optional lenses listed for PT-RQ18K in its datasheet — choose any to include with your inquiry.
1.67–2.41:1 Throw Ratio(4K / WUXGA) Zoom Lens for PT-RQ45K/RZ44K,
Lens type
Zoom lens
F-number
2.5
Focal length
(f) 35.0-50.9 mm
Throw ratio
-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Dimensions
(WxHxD) 154 × 154 × 265 mm (6-1/16 × 6-1/16 × 10-7/16")
Weight
[kg] Approx 5.2 kg (11.5 lbs)
1.79-2.59:1 Throw Ratio Zoom Lens for 3-Chip DLP
Lens type
Zoom Lens
F-number
2.5
Focal length
(f) 35.0-50.9 mm
Throw ratio
-> 4K 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Throw ratio
-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Dimensions
(WxHxD) Approx. 177 × 154 × 265 mm (6-31/32 × 6-1/16 × 10-7/16")
Zoom lens for 3-Chip DLP
Lens type
Zoom lens
F-number
2.5
Focal length
(f) 26.6– 36.4 mm
Throw ratio
-> WUXGA 1.26-1.72:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Throw ratio
-> SXGA+ 1.37–1.86:1
Dimensions
(WxHxD) 154 × 154 × 354 mm (6-1/16 × 6-1/16 × 13-15/16")
