Description

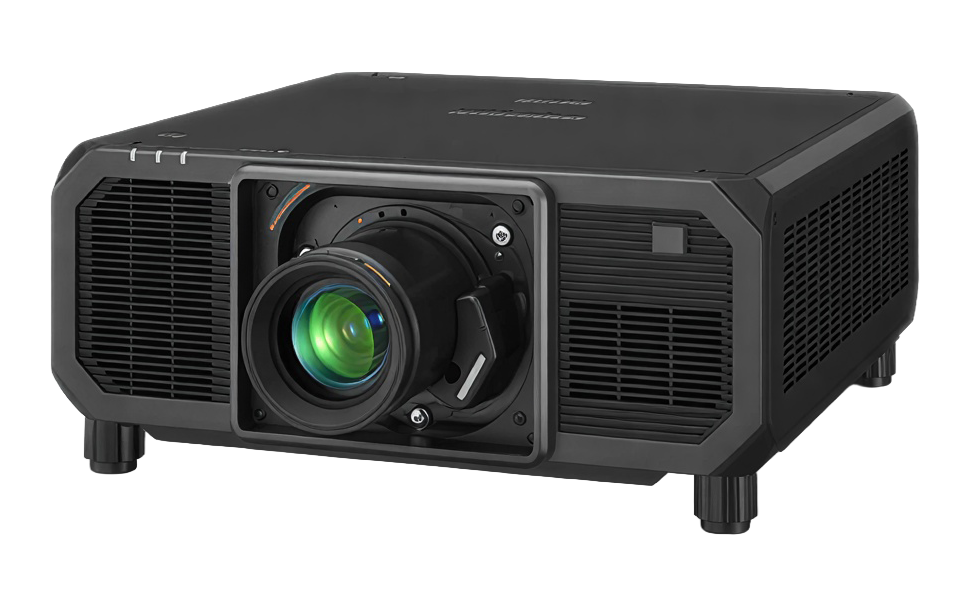

The Panasonic PT-HTQ20 brings 3-chip DLP-class color brightness.
VIVID PRIME RGB laser technology supports the Rec.
2020 color gamut standard, delivering vividly expressive 20,000 lm images that bring immersive attractions to the next level.
With color brightness approaching that of 3-Chip DLP models, the proprietary RGB-plus-phosphor design maintains smooth gradations for Rec.
709 content and reduces the rainbow effect.
Key Features
Optional lenses listed for PT-HTQ20 in its datasheet — choose any to include with your inquiry.
1.67–2.41:1 Throw Ratio(4K / WUXGA) Zoom Lens for PT-RQ45K/RZ44K,
Lens type
Zoom lens
F-number
2.5
Focal length
(f) 35.0-50.9 mm
Throw ratio
-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Dimensions
(WxHxD) 154 × 154 × 265 mm (6-1/16 × 6-1/16 × 10-7/16")
Weight
[kg] Approx 5.2 kg (11.5 lbs)
1.79-2.59:1 Throw Ratio Zoom Lens for 3-Chip DLP
Lens type
Zoom Lens
F-number
2.5
Focal length
(f) 35.0-50.9 mm
Throw ratio
-> 4K 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Throw ratio
-> WUXGA 1.67-2.41:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Dimensions
(WxHxD) Approx. 177 × 154 × 265 mm (6-31/32 × 6-1/16 × 10-7/16")
Zoom lens for 3-Chip DLP
Lens type
Zoom lens
F-number
2.5
Focal length
(f) 26.6– 36.4 mm
Throw ratio
-> WUXGA 1.26-1.72:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K)
Throw ratio
-> SXGA+ 1.37–1.86:1
Dimensions
(WxHxD) 154 × 154 × 354 mm (6-1/16 × 6-1/16 × 13-15/16")
