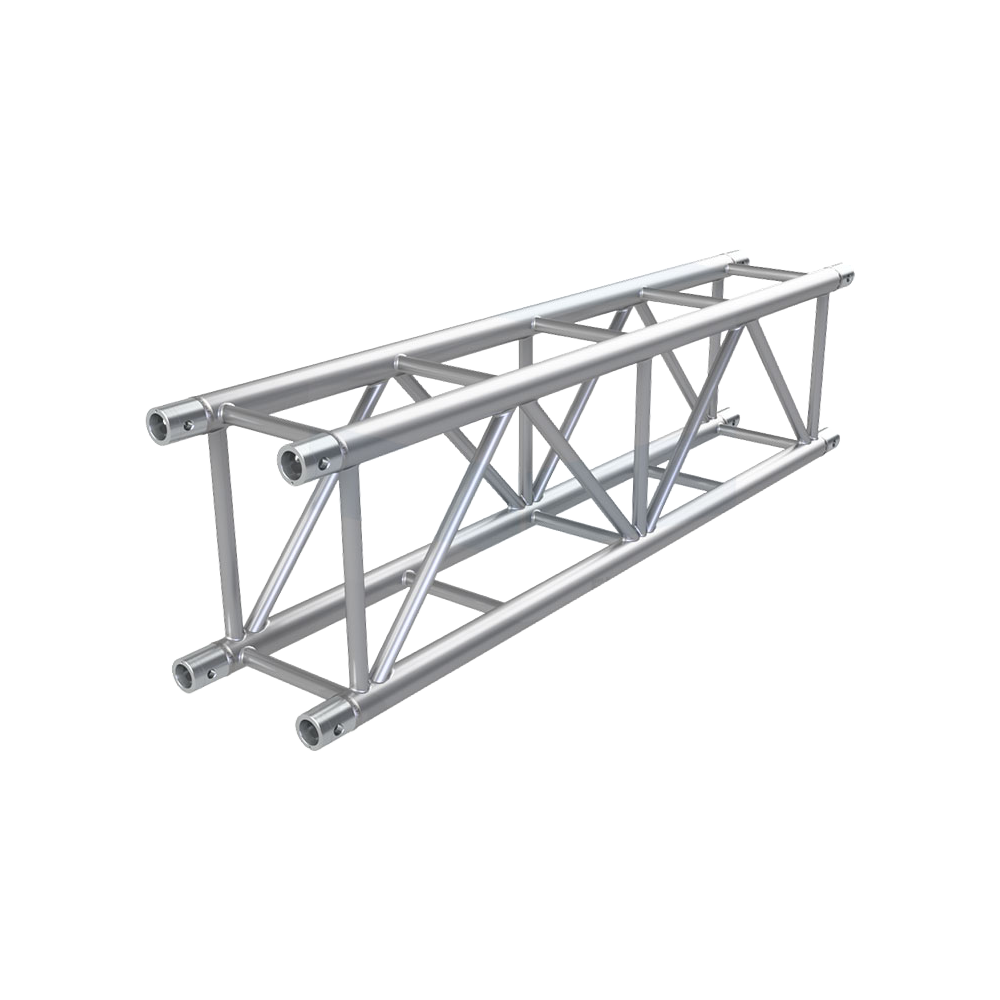

XD Rectangular Truss
Description
The Eurotruss XD Truss is a high-performance truss system engineered for longer spans under bending stress, supporting vertical loads at free spans of up to 20 metres at high load.
Distinguished by its slender profile and low packing volume, it is purpose-built for indoor use where space efficiency and structural performance are equally important.
Built via the fast CS3 connection system, the XD Truss is available as standard with horizontal pin positions, with diagonal pin positions available on request.
Length
Key Features
- Height: 400 mm / 15.75 in
- Width: 290 mm / 11.42 in
- Main Tube: 50 x 3 mm / 1.97 x 0.12 in
- Braces: 25 x 3 mm / 0.98 x 0.12 in
- Weight: ~9 kg/m / ~6 lbs/ft
- Pin Position: Horizontal or Diagonal
- Material: EN AW-6082 T6
- Connection: CS2-CON
