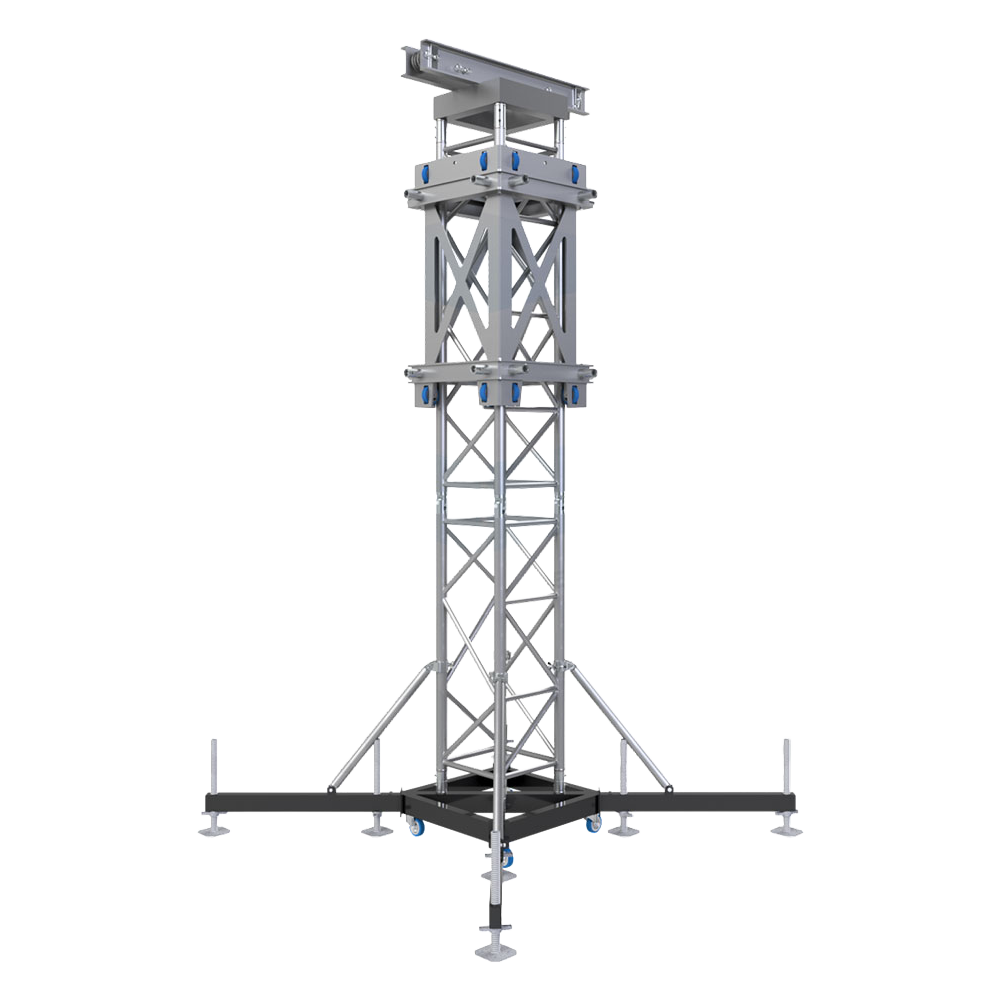

TD50 Tower

The Eurotruss TD50 Tower System is a high-performance vertical truss system engineered for extreme heights and high-load applications.

When combined with TT Truss, the TD50 Tower System reaches heights of up to 20 metres with a maximum load capacity of 8,000kg — delivering the structural capability required for the most ambitious touring, rental, and large-scale installation projects.

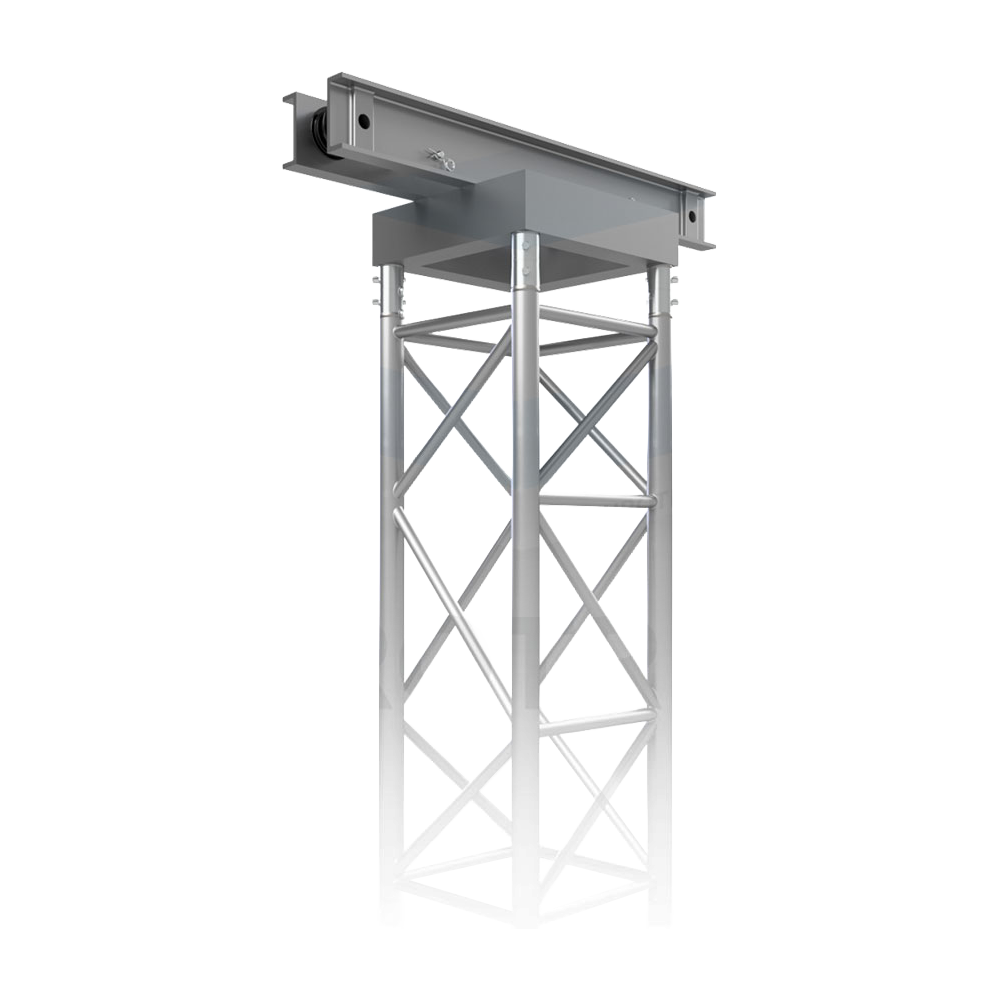

Top Section & Sleeve Blocks

A 2t double chain hoist Top Part with 4 wheels for high load-bearing.

The Top Part has integrated pickup points for dead hanging.

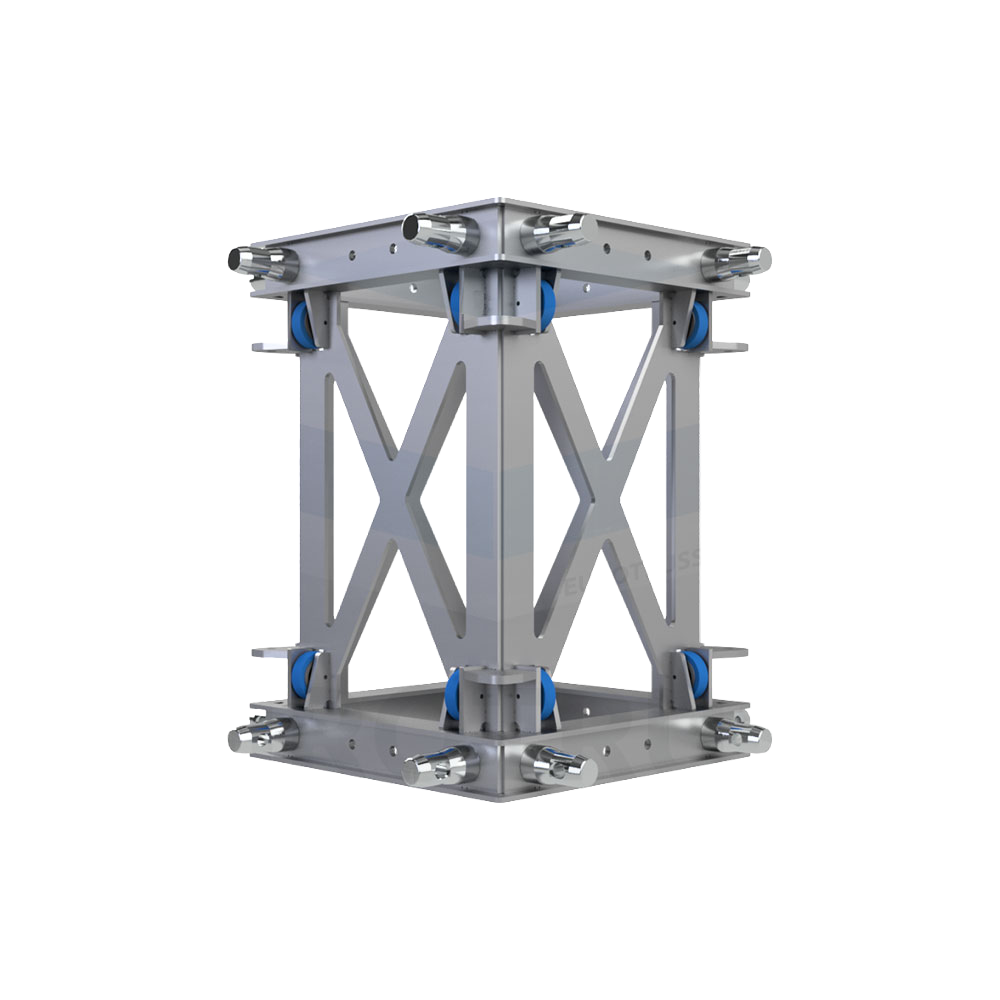

The sleeve block is a TTU/TTS/TT corner block with usage of 2 bolted sleeve plates.

These blocks make it possible to fit the TTU, TTS/TT/ Truss to all 4 sides by using bolted receivers.

The upper plate is equipped with an integrated pickup point.

Hinge set

A strong and cost-effective solution to erect the TD50 Tower.

The hinge sets are half connectors with a hinge fork which allow high vertical load.

4 Hinges are required per tower.

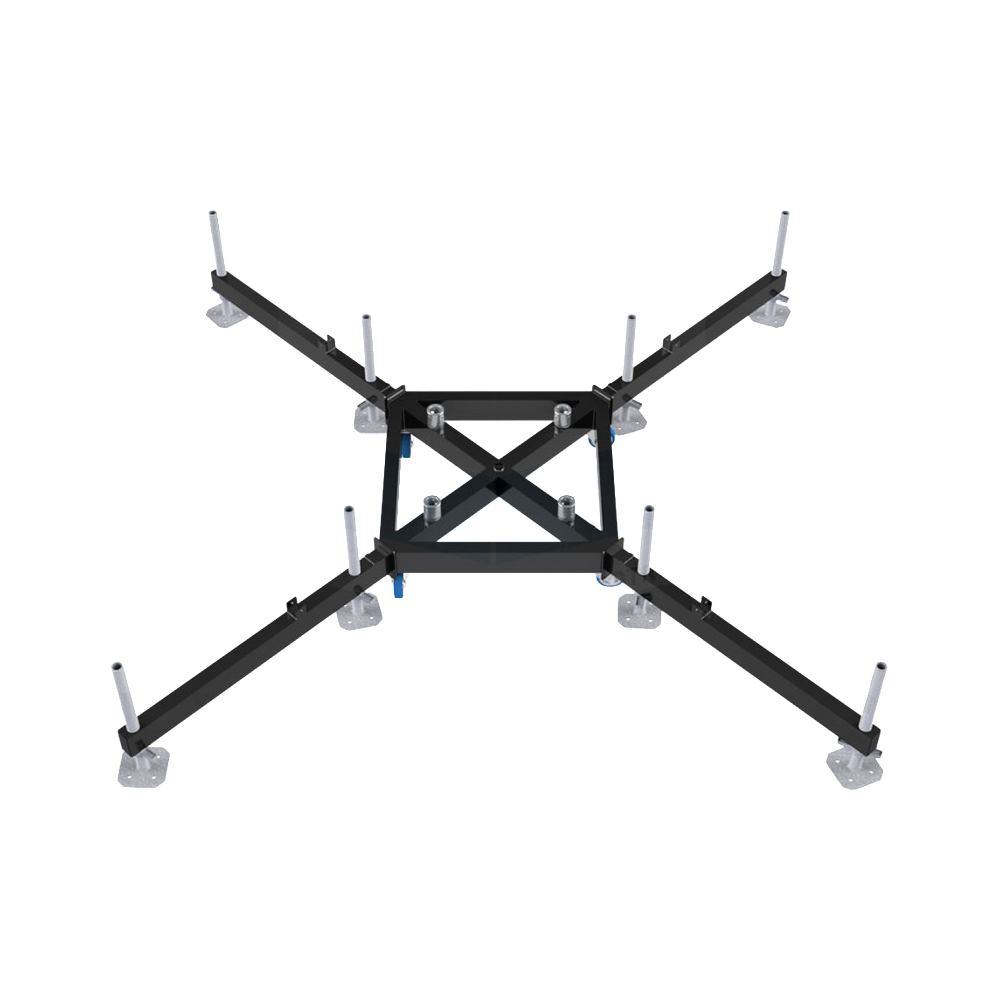

Base section & Outriggers

A Steel Base on wheels with short or long outriggers in combination with stabilizer bars.
