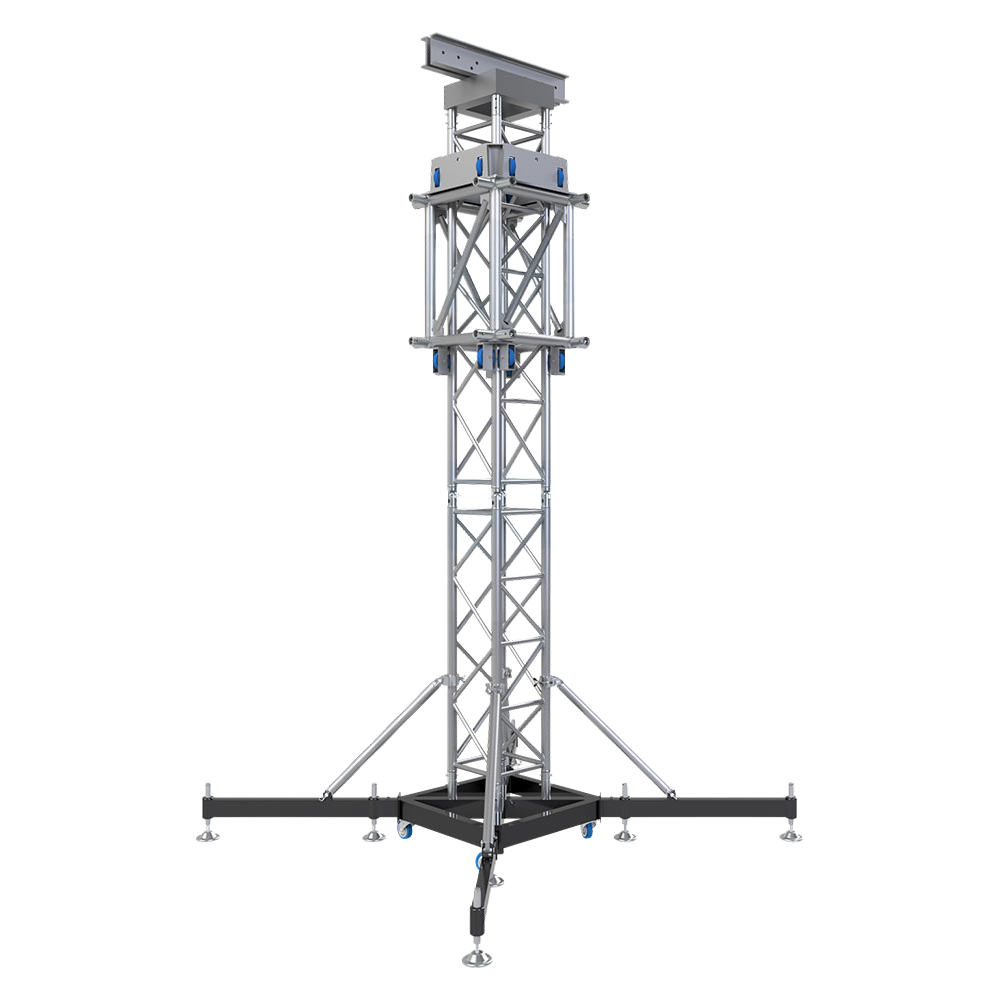

TD44 Tower

The Eurotruss TD44 Tower is a high-capacity vertical truss system engineered for the safe, quick lifting of regularly loaded horizontal HD/FD44, FT, XT, and TT Truss rigs and roofs to their required service height.

Designed to handle the high flexural and pressure strain demands generated by large roof structures, the TD44 delivers outstanding structural reliability for the most demanding touring, rental, and installation applications.

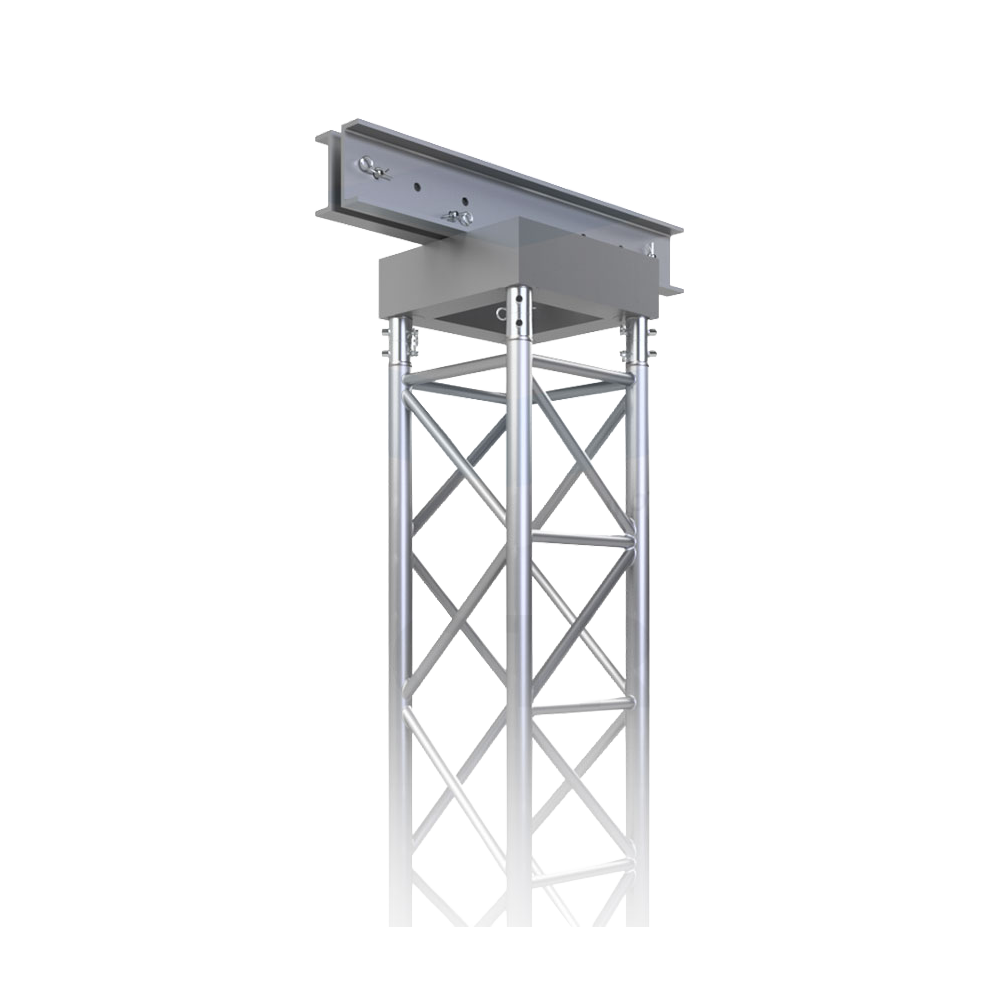

Top Section & Sleeve Blocks

A new multifunctional top part for use with a manual chain hoist as well as a motorized hoist has been redesigned and built stronger.

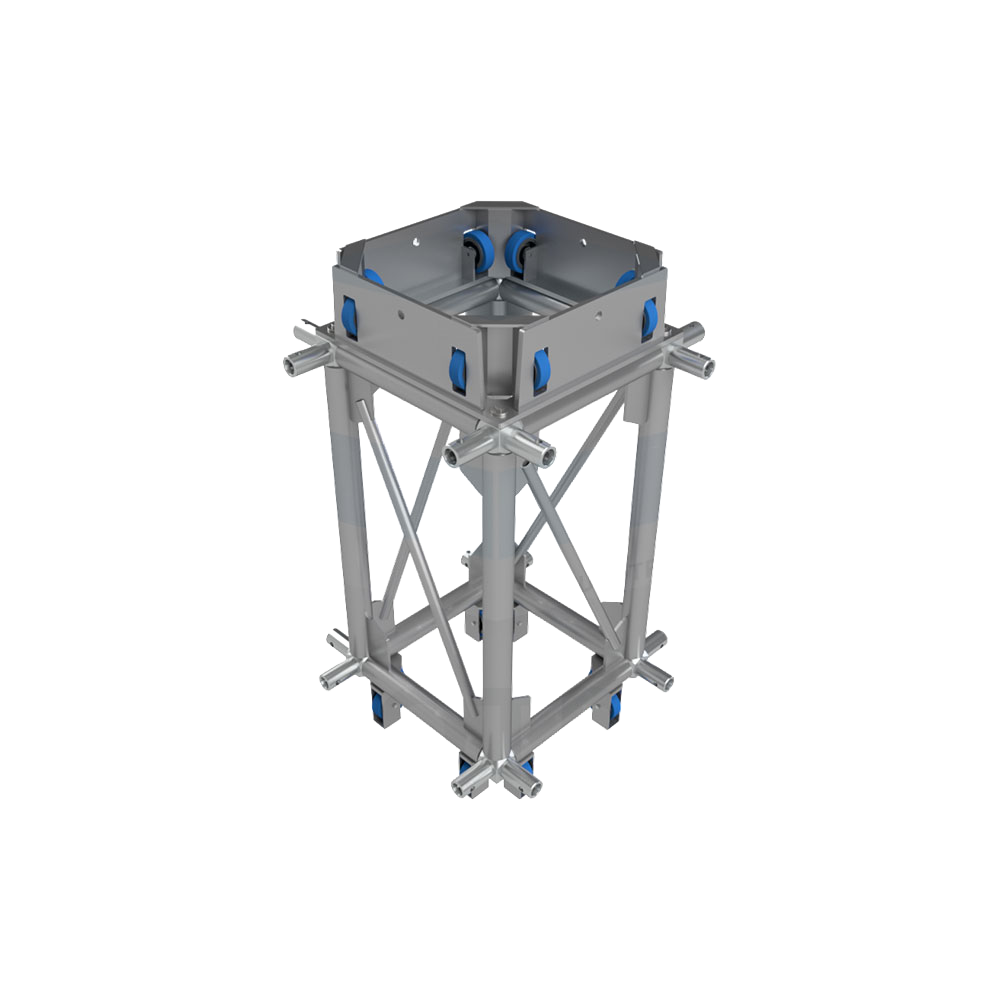

Standard-sized XTS and TT corner blocks with usage of 2 bolted sleeve plates guarantee a perfect geometric rig.

These blocks make it possible to fit the TT / XTS / FT50 Truss to all four sides

By using bolted receivers.

The upper sleeve plate is equipped with an integrated hanging point.

The standard FD44 sleeve blocks have pre-designed welded receivers on 3 sides for attachments of XD/ST or FT50 truss.

Hinge set

A strong, safe, and cost-effective solution to erect the TD44 Tower.

The hinge sets are 100mm long.

Those half connectors with a hinge fork allow a very high vertical load.

4 Hinge sets (2 left and 2 right) are required per tower.

Base section & Outriggers

Steel Base on wheels available with short outriggers and long outriggers in combination with stabilizer bars.
