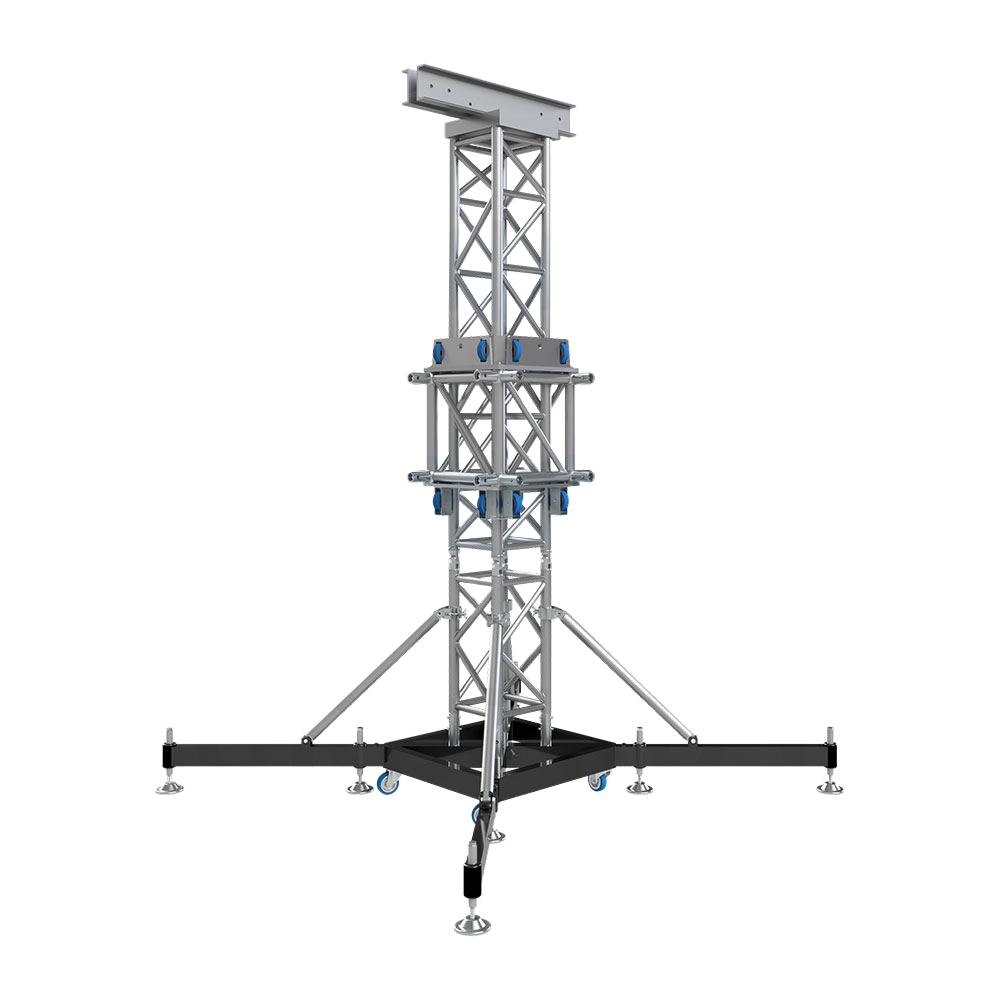

TD35 Tower

The Eurotruss TD35 Tower is a heavy-duty square 350mm vertical truss system engineered for the safe, quick lifting of horizontally loaded ST Truss rigs and roofs to their required service height.

Designed to withstand high flexural and pressure strain — particularly from roof structures — the TD35 features an integrated horizontal climbing brace on one side for safe and efficient access.

Manufactured in full compliance with DIN EN 1999-1-1 & 1999-1-1/A2 within Eurocode 9 and TÜV approved for complete structural confidence.

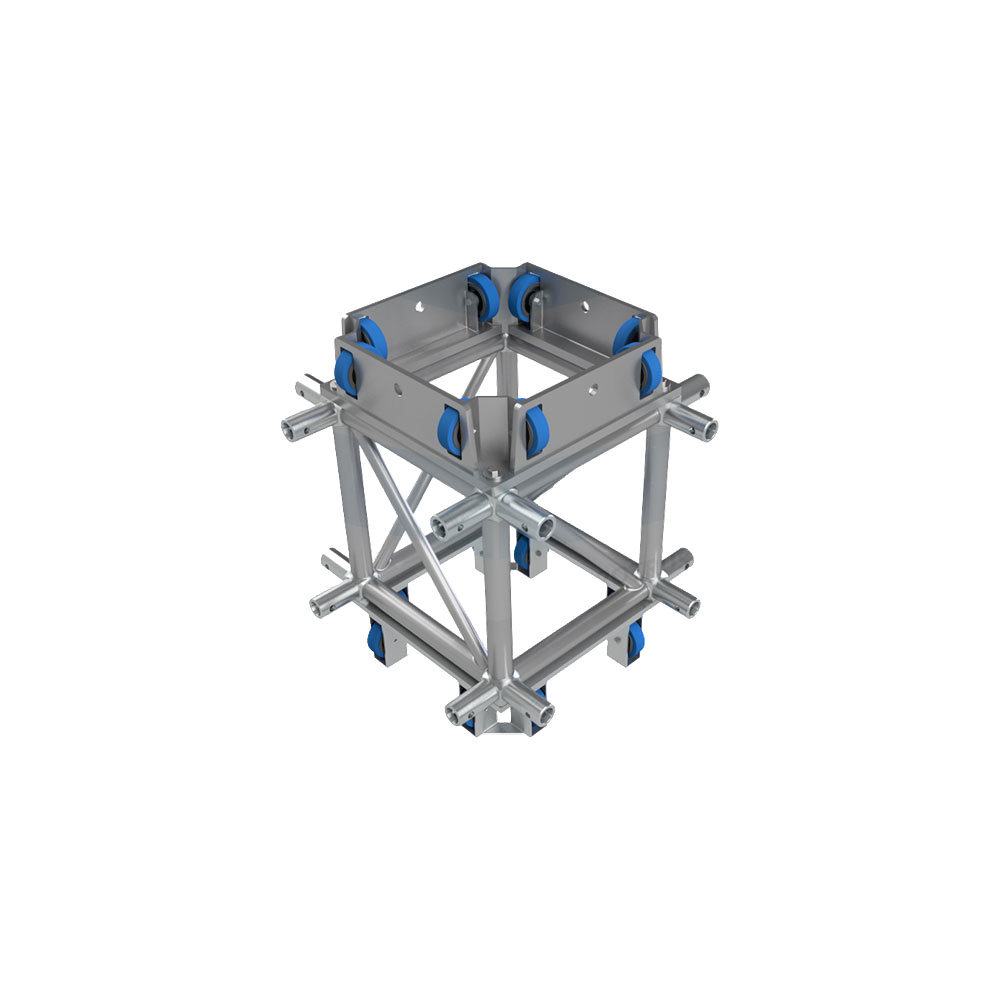

Top Section & Sleeve Blocks

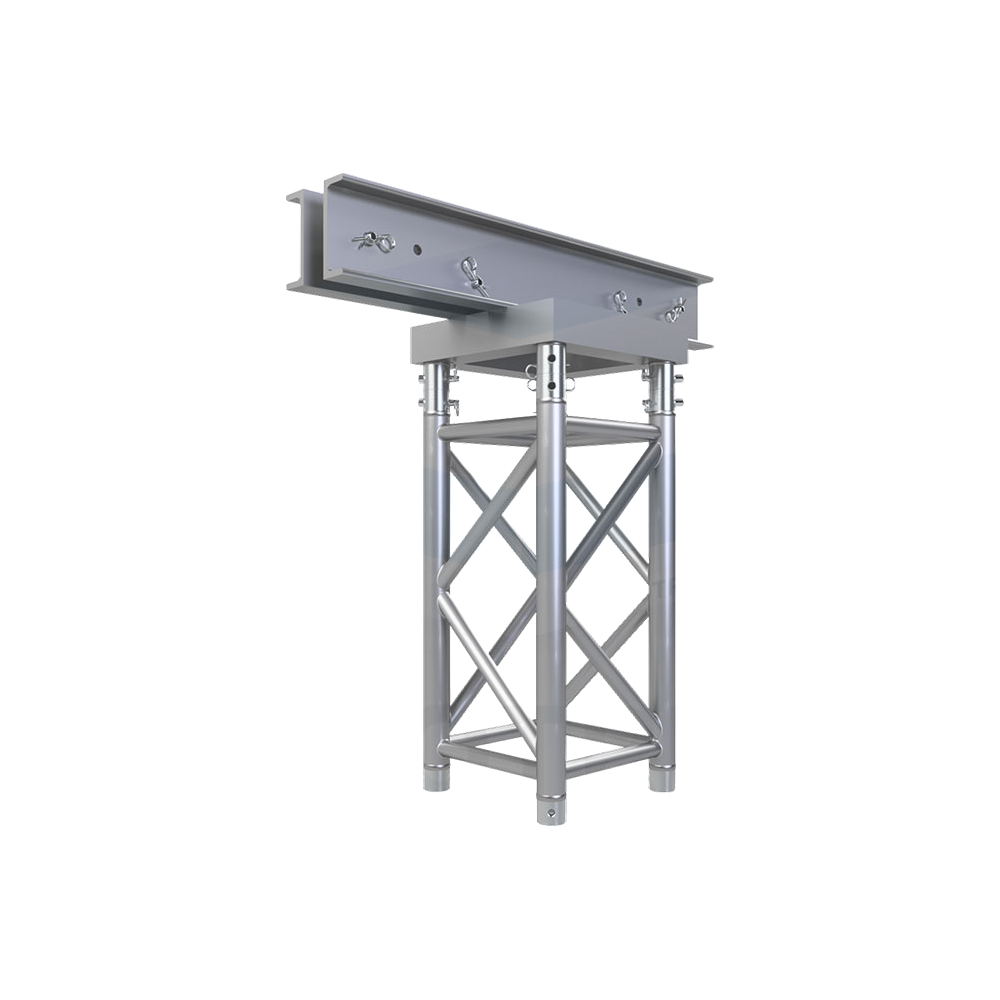

A new multifunctional top part for use with a manual chain hoist as well as a motorized hoist has been redesigned and built stronger.

Standard-sized ST corner block with the use of 2 bolted sleeve plates guarantees a perfect geometric rig.

These blocks make it possible to fit the ST Truss to all four sides by using bolted receivers.

The upper sleeve plate is equipped with an integrated hanging point.

Hinge set

A strong, safe and cost-effective solution to erect the TD35 Tower.

The hinge sets are 100mm long.

Those half connectors with a hinge fork allow a very high vertical load.

4 Hinge sets (2 left and 2 right) are required per tower.

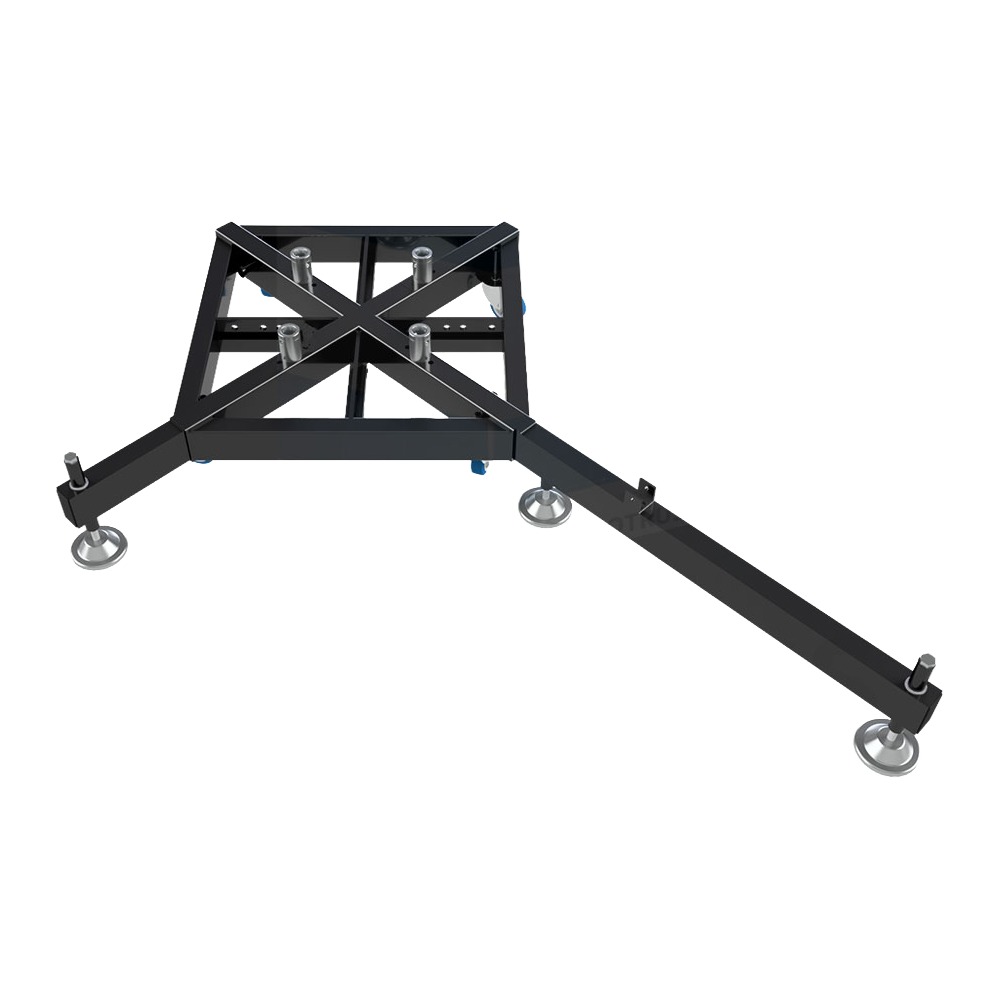

Base section & Outriggers

Steel Base on wheels available with short outriggers and long outriggers in combination with stabilizer bars.
