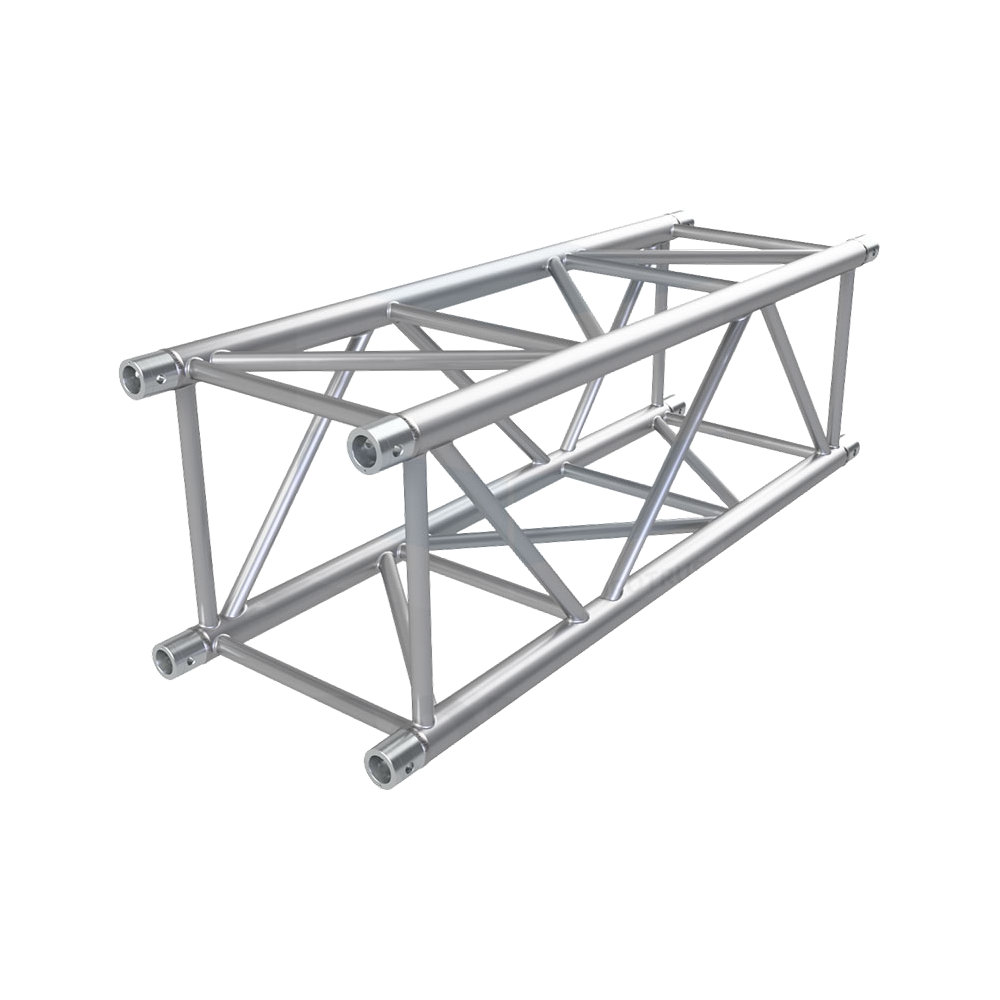

ST Square Truss
Description
The Eurotruss ST Truss is a heavy-duty truss system engineered to meet the most demanding load-bearing requirements in outdoor rigging environments, with free spans of up to 24 metres under heavy load.
Its square profile geometry and complete diagonal bracing on all sides deliver equal rigidity in both vertical and horizontal directions, making it exceptionally versatile across a wide range of rigging configurations.
The ST Truss also serves as the primary main truss in the majority of Eurotruss Roof Systems, including the SR30 and SR40.
Length
Key Features
- Height: 510 mm / 20.08 in
- Width: 510 mm / 20.08 in
- Main Tube: 50 x 4 mm / 1.97 x 0.16 in
- Braces: 30 x 3 mm / 1.18 x 0.12 inWeight~13,5 kg/m / ~9,1 lbs/ft
- Pin Position: Horizontal
- Material: EN AW-6082 T6
- Connection: CS3-CON
