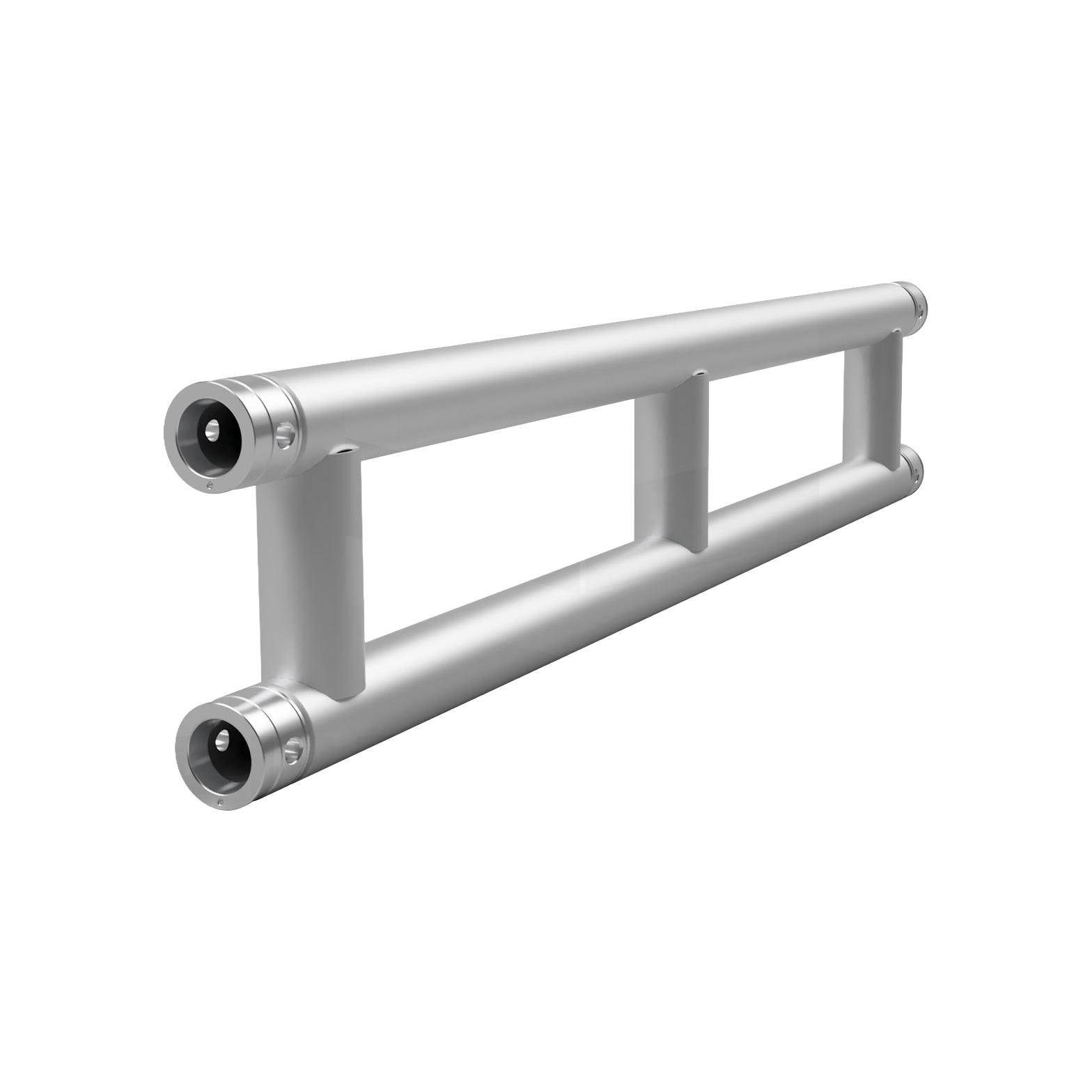

JT20 Ladder Truss
Description
The Eurotruss JT20 Ladder Truss is a compact, low-profile truss solution designed for low-headroom environments such as studios and exhibition stands.
At just 195mm in height, it delivers reliable vertical load performance in space-constrained installations, with a universal corner block system and horizontal pin position ensuring fast, straightforward setup via the CS1 connection system.
Length
Key Features
- Height: 195 mm / 7.7 in
- Width: 50 mm / 1.9 in
- Main Tube: 50 x 3 mm / 1.9 x 0.12 in
- Braces: 50 x 3 mm / 1.9 x 0.12 in
- Weight: ~3kg/m / ~2.0 lbs/ft
- Pin PositionHorizontal
- Material: EN AW-6082 T6
- Connection: CS1-CON
