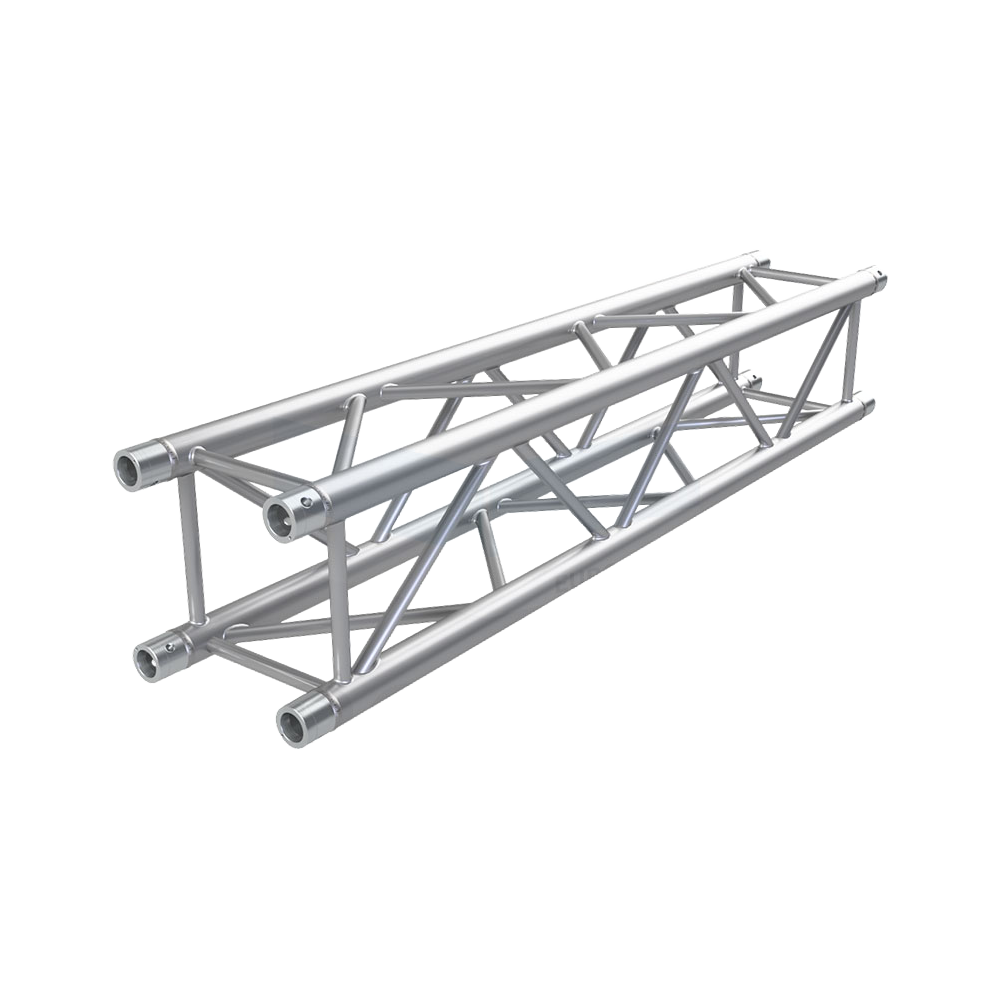

HD34 Square Truss
Description
The Eurotruss HD34 is the ultimate multipurpose truss trusted by professionals worldwide, engineered for spans of up to 18 metres and standard tower applications.
Its 3mm wall-thickness main tube delivers exceptional durability and strength for the most demanding high-frequency and installation environments.
A wide variety of corners and accessories are available, including fixed corners, corner blocks, and book corners, all via the fast CS1 connection system — making it the definitive trussing solution for rental, touring, and exhibition companies.
Length
Key Features
- Height: 290 mm / 11.42 in
- Width: 290 mm / 11.42 in
- Main Tube: 50 x 3 mm / 1.97 x 0.12 in
- Braces: 20 x 2 mm / 0.79 x 0.08 in
- Weight: ~7,5 kg/m / ~5 lbs/ft
- Pin Position: Diagonal
- Material: EN AW-6082 T6
- Connection: CS1 - CON
