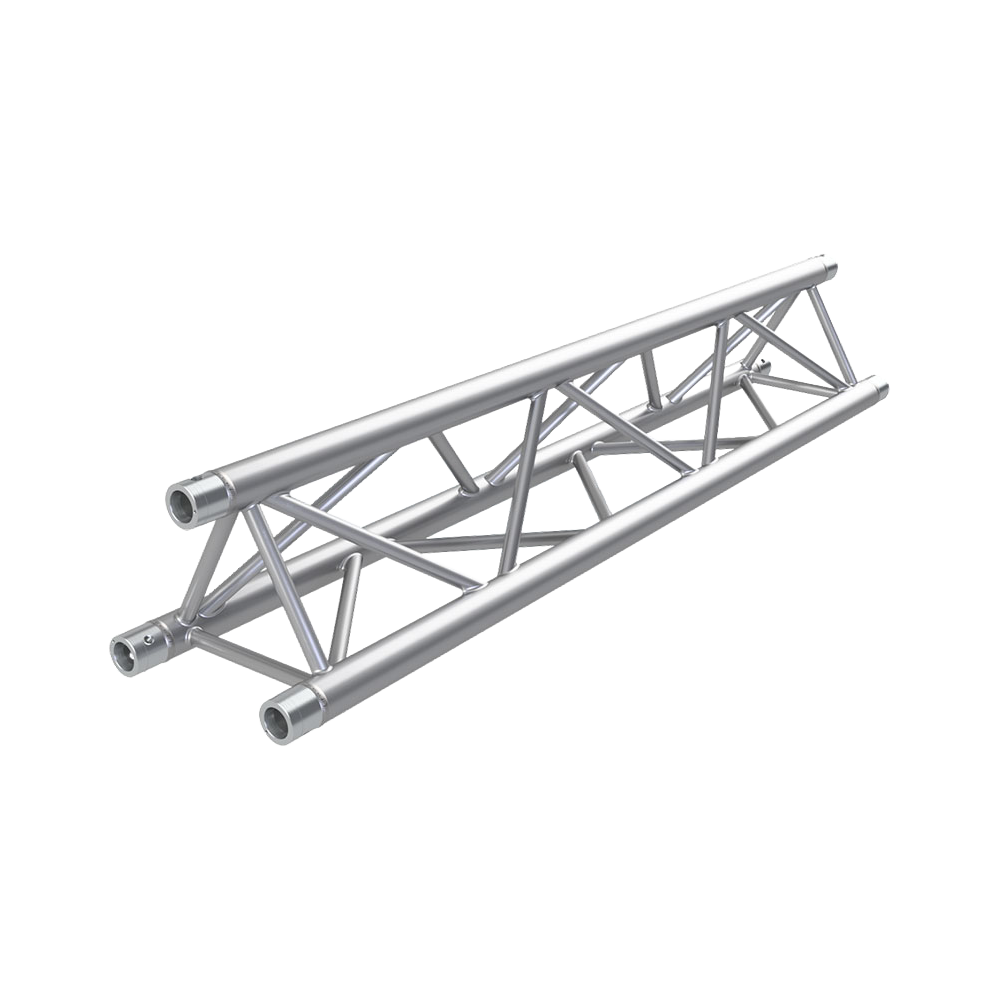

HD33 Triangle Truss
Description
The Eurotruss HD33 is a heavy-duty triangular truss with equilateral profile geometry, purpose-built for larger loads and bending stress-resistant spans of up to 16 metres.
Its 3mm wall thickness main tube ensures exceptional durability and strength for high-frequency usage and installations that demand higher loading capacity, all via the fast CS1 connection system.
Length
Key Features
- Height: 258 mm / 10.6 in
- Width: 290 mm / 11.42 in
- Main Tube: 50 x 3 mm / 1.97 x 0.12 in
- Braces: 20 x 2 mm / 0.79 x 0.08 in
- Weight: ~5,5 kg/m / ~3,7 lb/ft
- Pin Position: Diagonal
- Material: EN AW-6082 T6
- Connection: CS1 - CON
