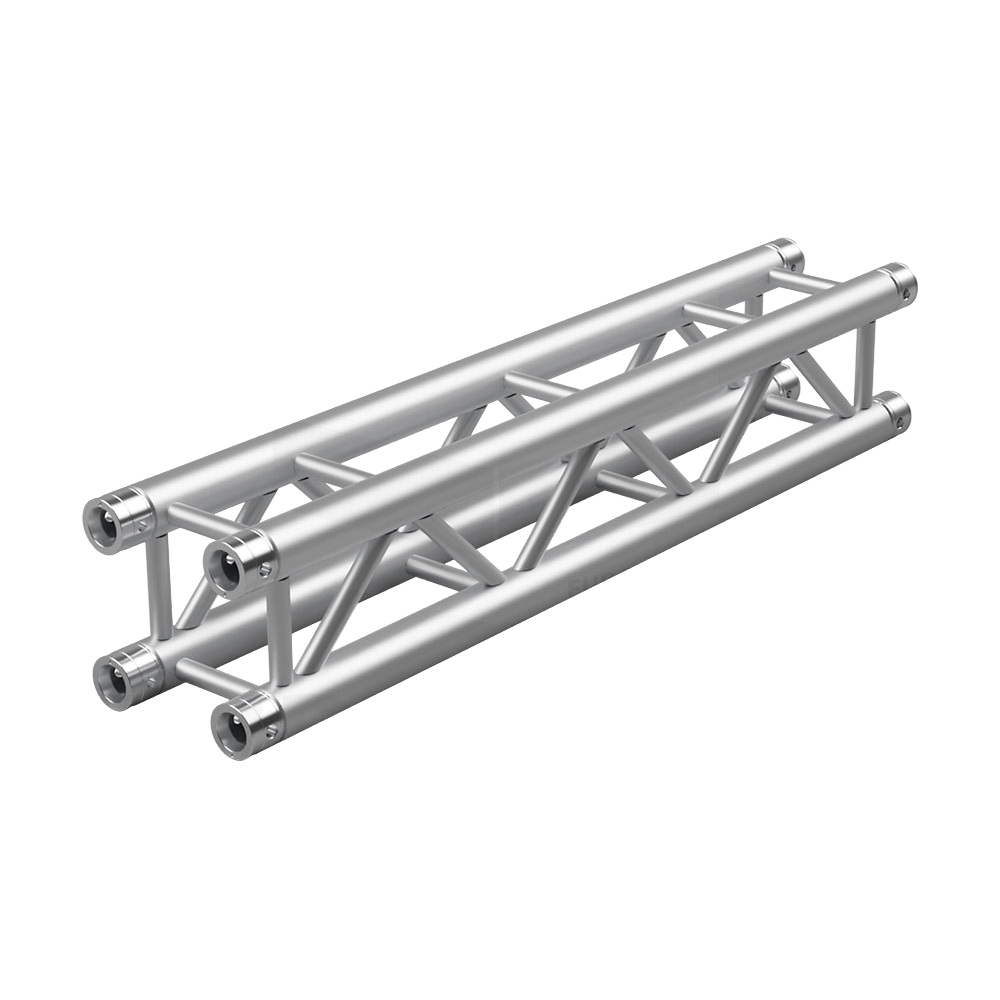

HD24 Square Truss
Description
The Eurotruss HD24 is a compact box truss measuring just 195×195mm, making it the ideal solution for installations where headroom is limited but medium to heavy loads are required — with free spans of up to 14 metres.
Built with a 50×3mm main tube and standard conical connector, its small footprint also makes it an efficient choice for minimal storage and transport space.
The horizontal pin position ensures fast, easy setup, with corner blocks available for added configuration flexibility.
Length
Key Features
- Height: 195 mm / 7.7 in
- Width: 195 mm / 7.7 in
- Main Tube: 50 x 3 mm / 1.91 x 0.12 in
- Braces: 20 x 2 mm / 0.78 x 0.12 in
- Weight: ~5 kg/m / 3.35 lbs/ft
- Pin Position: Horizontal
- Material: EN AW-6082 T6
- Connection: CS1-CON
