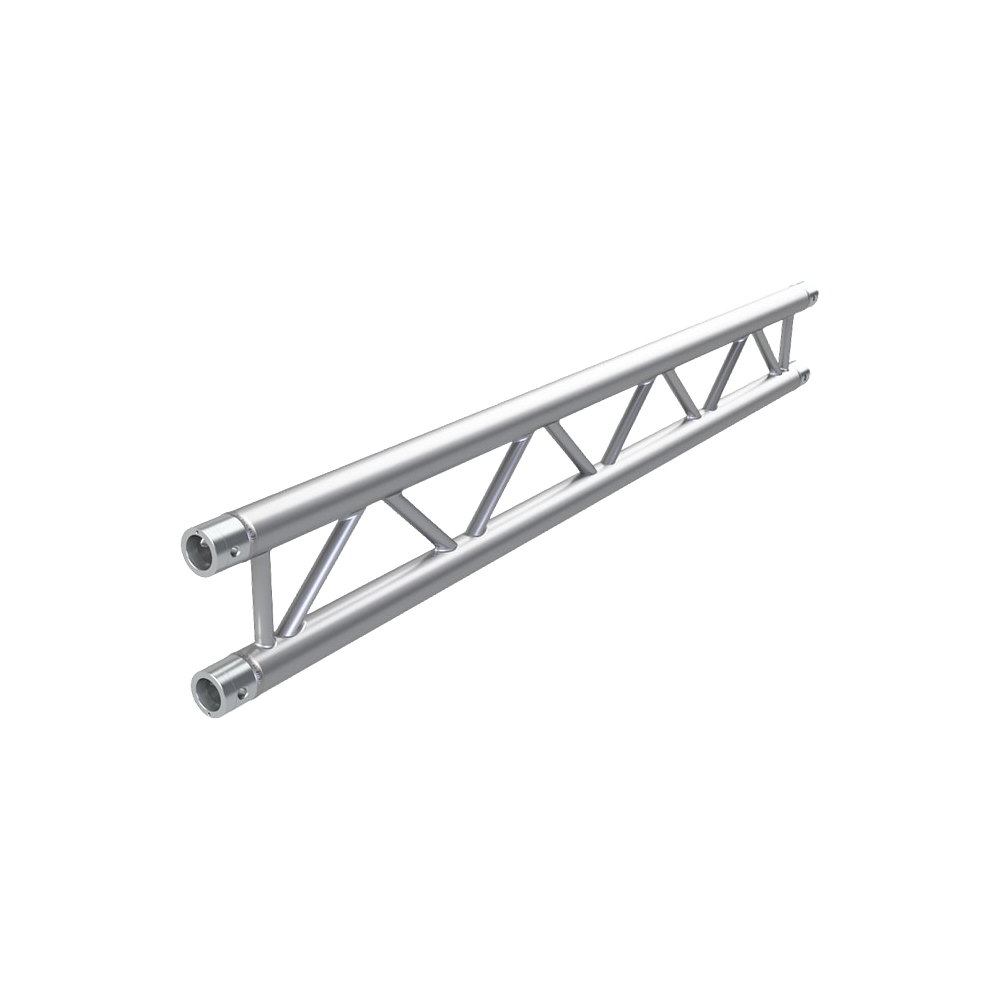

HD22 Ladder Truss
Description
The Eurotruss HD22 Ladder Truss is a premium ladder beam truss delivering an optimal balance of strength, durability, and installation efficiency.
Its symmetrical bracing pattern and 200mm height ensure maximum structural stability, while the horizontal pin position and CS1 connection system enable fast, accurate setup.
Length
Key Features
- Height: 200 mm / 7.87 in
- Width: 50 mm / 1.97 in
- Main Tube48,4 x 4,47 mm / 1.91 x 0.18 in
- Braces20 x 2 mm / 0.79 x 0.08 in
- Weight~4,3 kg/m / ~2,9 lbs/ft
- Pin Position: Horizontal
- Material: EN AW-6082 T6
- ConnectionCS1 - CON
