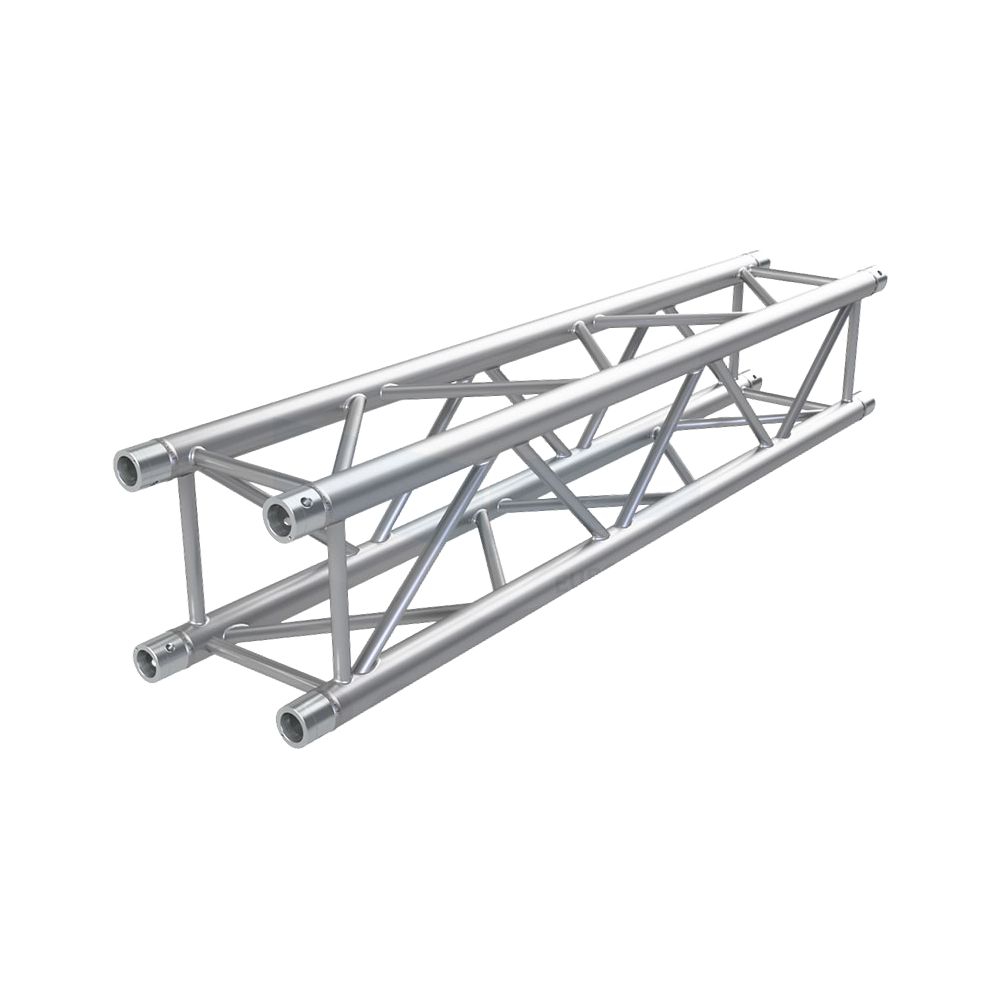

FD34 Square Truss
Description
The Eurotruss FD34 is the classic 290mm box truss — a proven, ultimate multipurpose truss solution for spans of up to 16 metres and standard tower applications.
Designed for high-frequency usage and installations requiring higher loading, it is the definitive trussing system for rental, touring, and exhibition companies.
A wide variety of corners and accessories are available, including fixed corners, corner blocks, and book corners, all via the fast CS1 connection system.
Length
Key Features
- Height: 290 mm / 11.42 in
- Width: 290 mm / 11.42 in
- Main Tube: 50 x 2 mm / 1.97 x 0.08 in
- Braces: 20 x 2 mm / 0.79 x 0.08 in
- Weight: ~6 kg/m / ~4 lbs/ft
- Pin Position: Diagonal
- Material: EN AW-6082 T6
- Connection: CS1 - CON
