FD33 Triangle Truss
Description

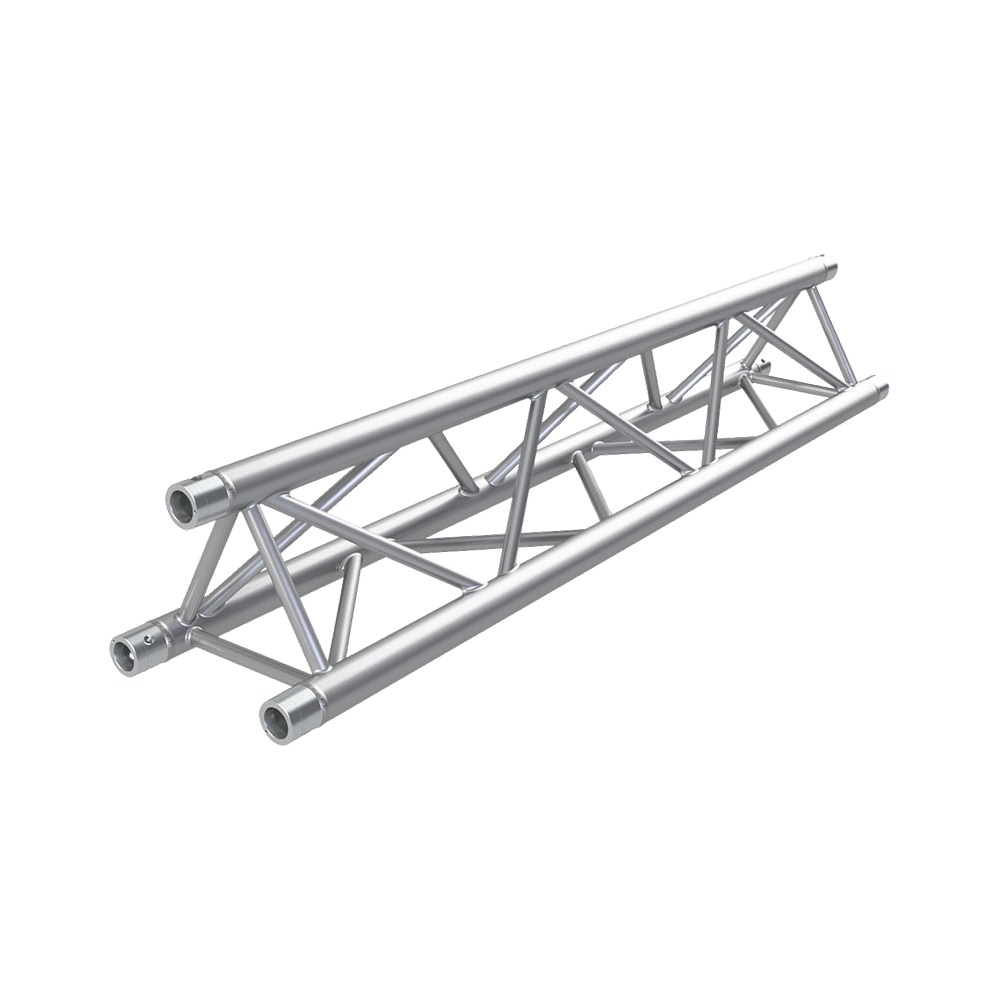

The Eurotruss FD33 is a triangular truss with equilateral profile geometry, engineered for larger loads and bending-stress-resistant spans of up to 12 metres.
Designed for high-frequency usage and demanding installation environments, it delivers reliable structural performance via the fast CS1 connection system.
Length
Key Features
- Height: 258 mm / 10.16 in
- Width: 290 mm / 11.42 in
- Main Tub: e50 x 2 mm / 1.97 x 0.08 in
- Braces: 20 x 2 mm / 0.79 x 0.08 in
- Weight: ~4,5 kg/m / ~3 lbs/ftPin
- Position: Diagonal
- Material: EN AW-6082 T6
- Connection: CS1 - CON
