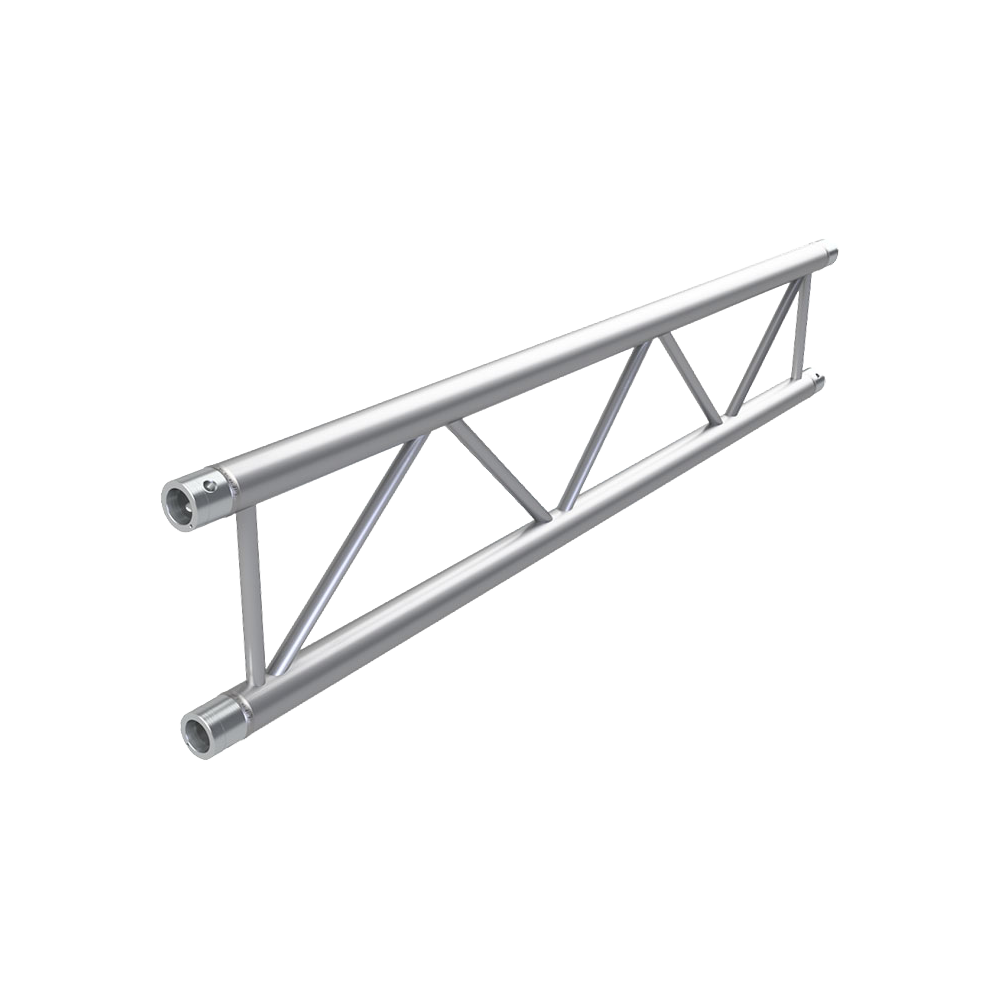

FD32 Ladder Truss
Description
The Eurotruss FD32 Ladder Truss is a versatile truss solution for both vertical and horizontal rigging applications.
Its tolerance-free conical connector system and proven Eurotruss bracing pattern deliver reliable performance under bending stress, while compatibility with the FD34 Truss expands its configuration possibilities.
Available in non-standard lengths and shapes on request.
Key Features
- Length: 0.5 m - 0.75 m - 1 m - 1.5 m - 2 m - 2.5 m - 3 m - 3.5 m - 4 m
- Technical specifications
- Height: 290 mm / 11.42 in
- Width: 50 mm / 1.97 in
- Main Tube: 50 x 2 mm / 1.97 x 0.08 in
- Braces: 20 x 2 mm / 0.79 x 0.08 in
- Weight: ~3 kg/m / ~2 lbs/ft
- Pin Position: Diagonal
- Material: EN AW-6082 T6
- Connection: CS1 - CON
