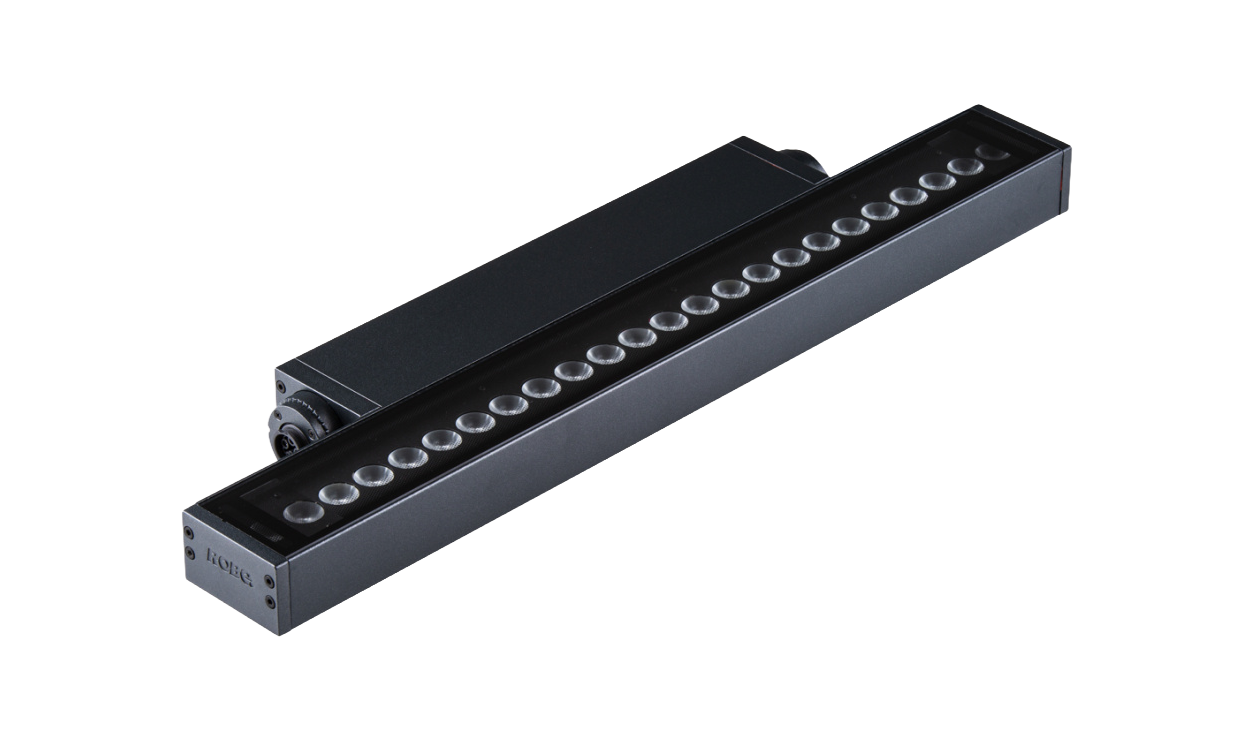

Eminere Side 1/2/3/4
Description
The Eminere Side is a low-profile linear luminaire specifically engineered for space-constrained applications such as window sills, ledges, and architectural recesses.
Building on the established Eminere platform, it delivers the same precision optics and robust construction in a form factor optimised for installations where depth is at a premium.

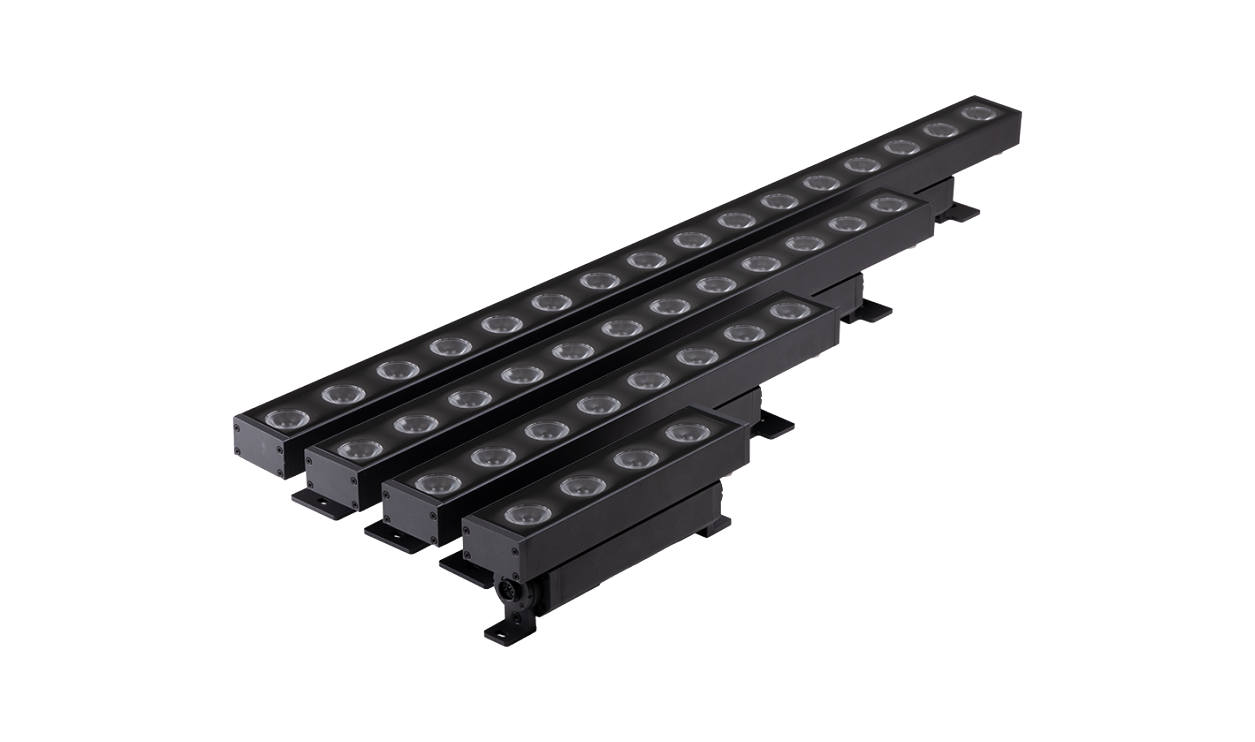

Available in four sizes with RGBW, RGBA, or PureWhite single-chip LEDs, it performs reliably across both exterior and interior environments.
MAX. LUMEN OUTPUT
1,147 / 2,294 / 3,441 / 4,588 lm (version 1/2/3/4)
FEATURE
12 / 24 / 36 / 48 x Single-Chip LEDs
PROJECTED LUMEN MAINTENANCE
L90B10 >90,000 hrs @ Ta = 25°C / 77°F
TYPICAL POWER CONSUMPTION
25 / 45 / 65 / 85W (version 1/2/3/4)
- Max. lumen output: 1,147 / 2,294 / 3,441 / 4,588 lm (version 1/2/3/4)
- 12 / 24 / 36 / 48 x Single-Chip LEDs
- Projected lumen maintenance: L90B10 >90,000 hrs @ Ta = 25°C / 77°F
- Typical power consumption: 25 / 45 / 65 / 85W (version 1/2/3/4)
- Low profile design optimised for space-constrained installations
- Wide range of precision optics
- Aluminium body with tempered glass
- IP67 rated for extreme environment performance
- Dimensions (HxWxL): 148 x 76 x 329 / 629 / 929 / 1,229 mm — 2.5 / 4.2 / 5.9 / 7.7 kg
