CM-820004 Manual Control BGV-D88‑ch Linkable Direct Control
Description

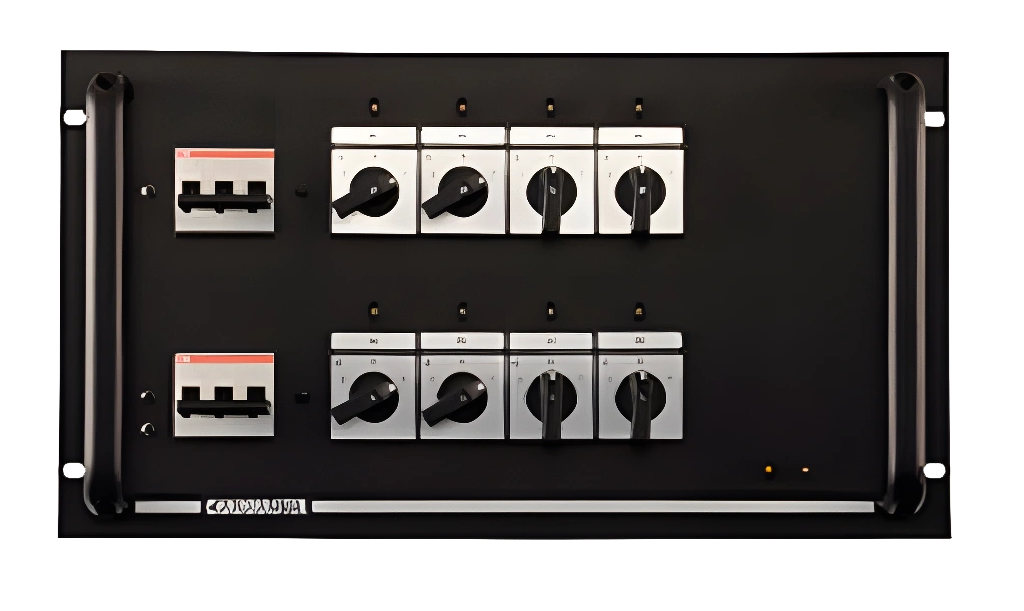

ChainMaster CM-820 BGV-D8 is a scalable 8-channel linkable manual controller for direct-controlled electric chain hoists, housed in a 19" steel rack enclosure and designed to grow alongside expanding rigging requirements.
Key Features
- 8-channel linkable direct control, for hoists up to 1kW
- 19" steel housing, 6U
- Front-mounted preselection switch with LED direction indicators
- Rotation and phase failure monitoring, main contactor for GO and emergency stop
- IN CEE-32/5 (phase inverter), OUT 8× CEE-16/4
- Termination plug and 1m XLR-7 link cable included
